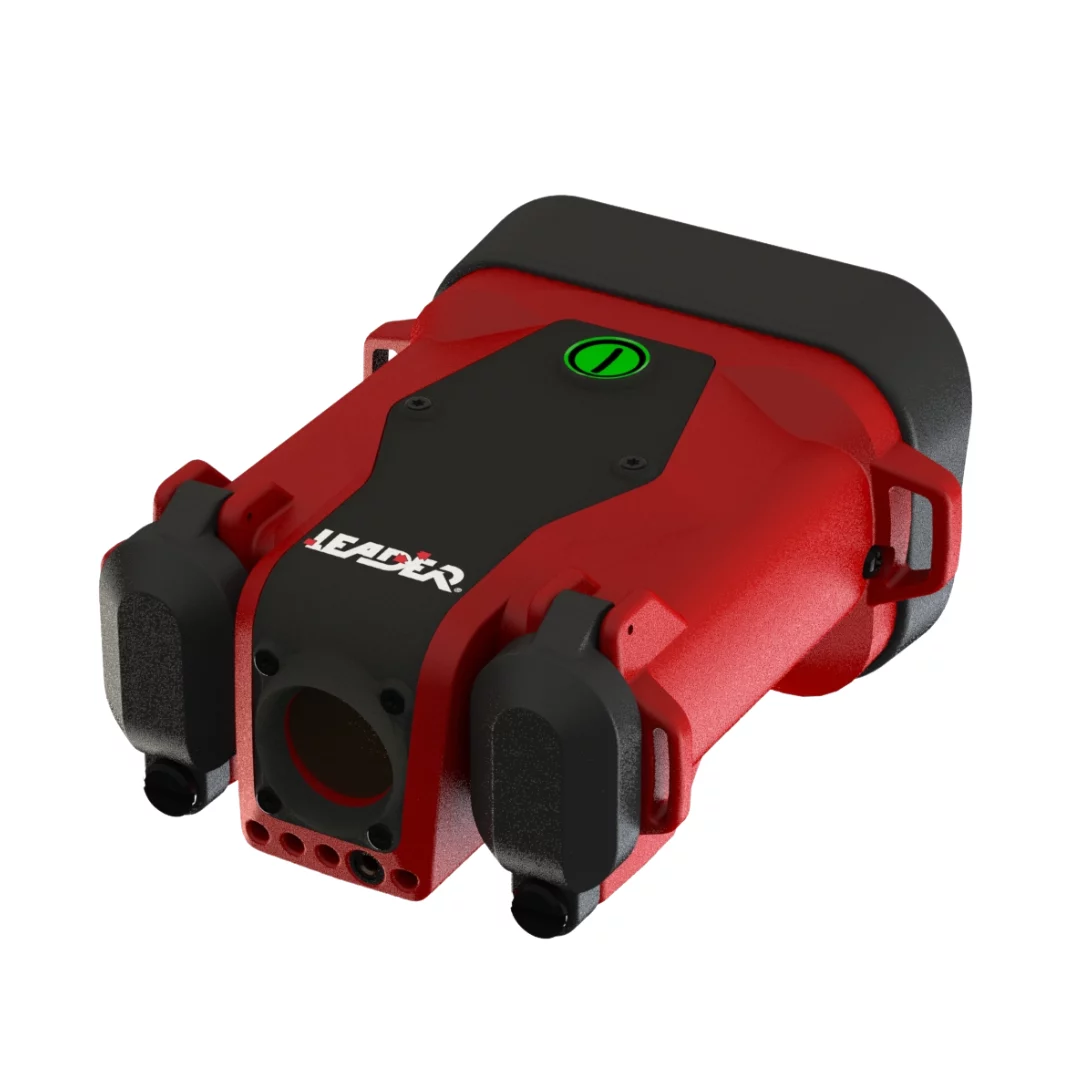

LEADER TIC 3.1
Compact and ergonomic. Featuring a multi-function button for ease of operation.
It is the ideal choice for the first-response team arriving at the scene. With top-tier quality, the TIC 3.1 thermal imaging camera is perfect for risk identification and assessment (fire, heat, firefighting progress) as well as rapid search for missing persons.
6-year warranty for the batteries
10-year warranty for the thermal sensor
Technical Features
- Compact (dimensions without handle): 165x140x85mm
- Lightweight: 910g with 2 batteries and hand straps

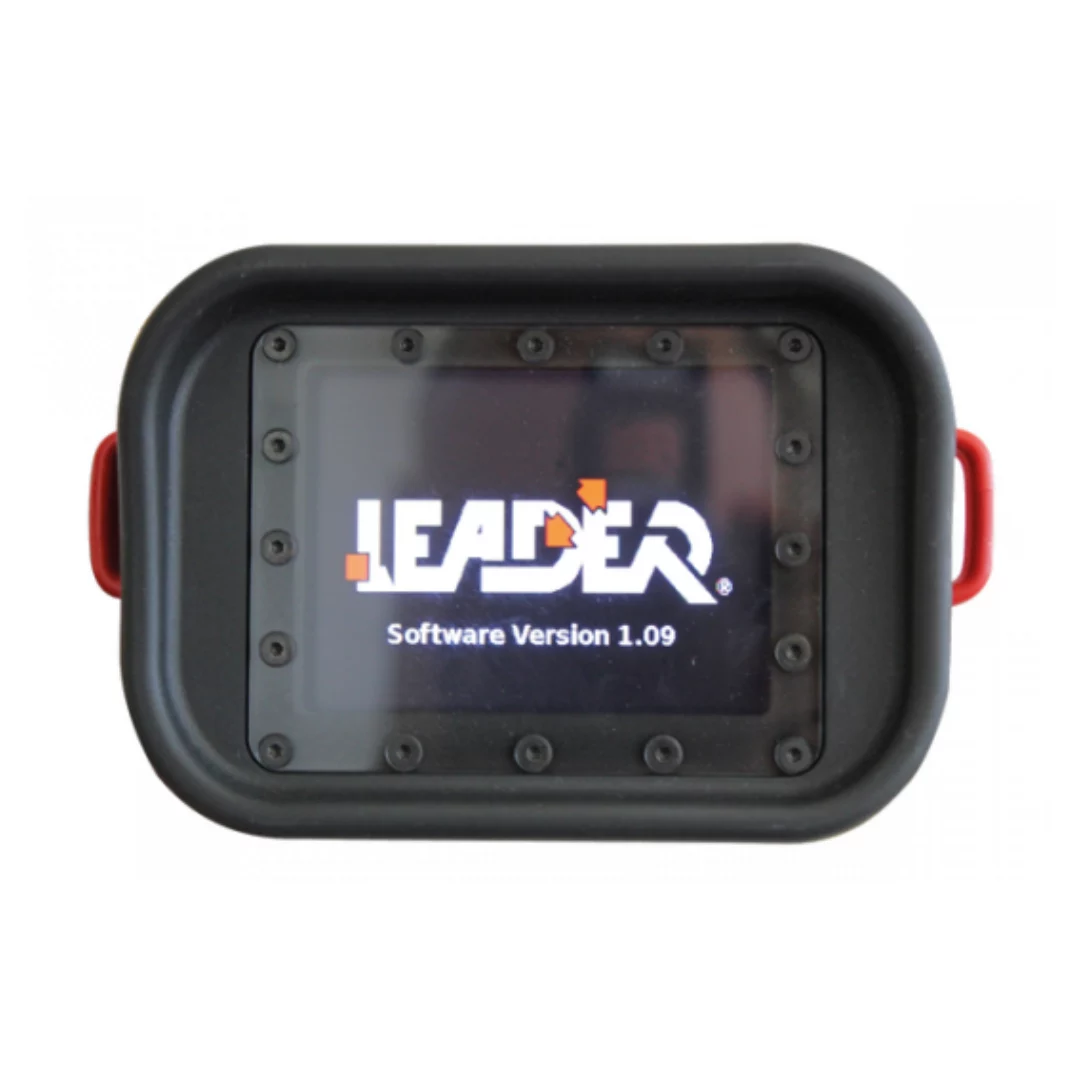

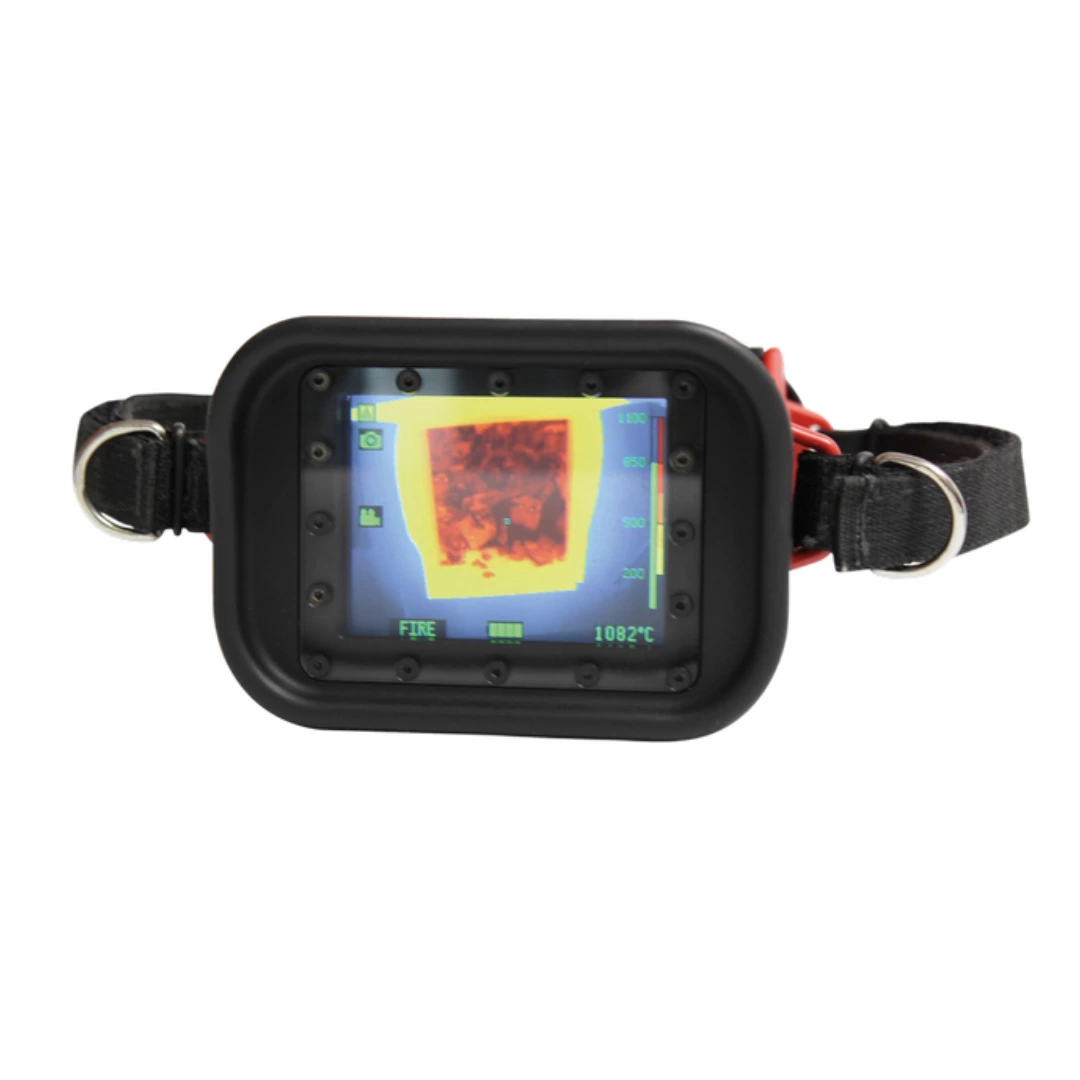

- Large screen (3.5”) for better visibility – Digital temperature display (hot spot measurement)
- Temperature range: -40°C to +1150°C
- Single color representation – Optional ability to add a second color representation
- Video recording and photo capture function (optional)
- Battery warranty: 6 years, 5000 charge cycles
- Durable LiFePO4 batteries – Safe for use in high temperatures
- ECO BOOST system for extended operating time
- Up to 8 hours of operation with 2 batteries
- Germanium protective window for lens protection

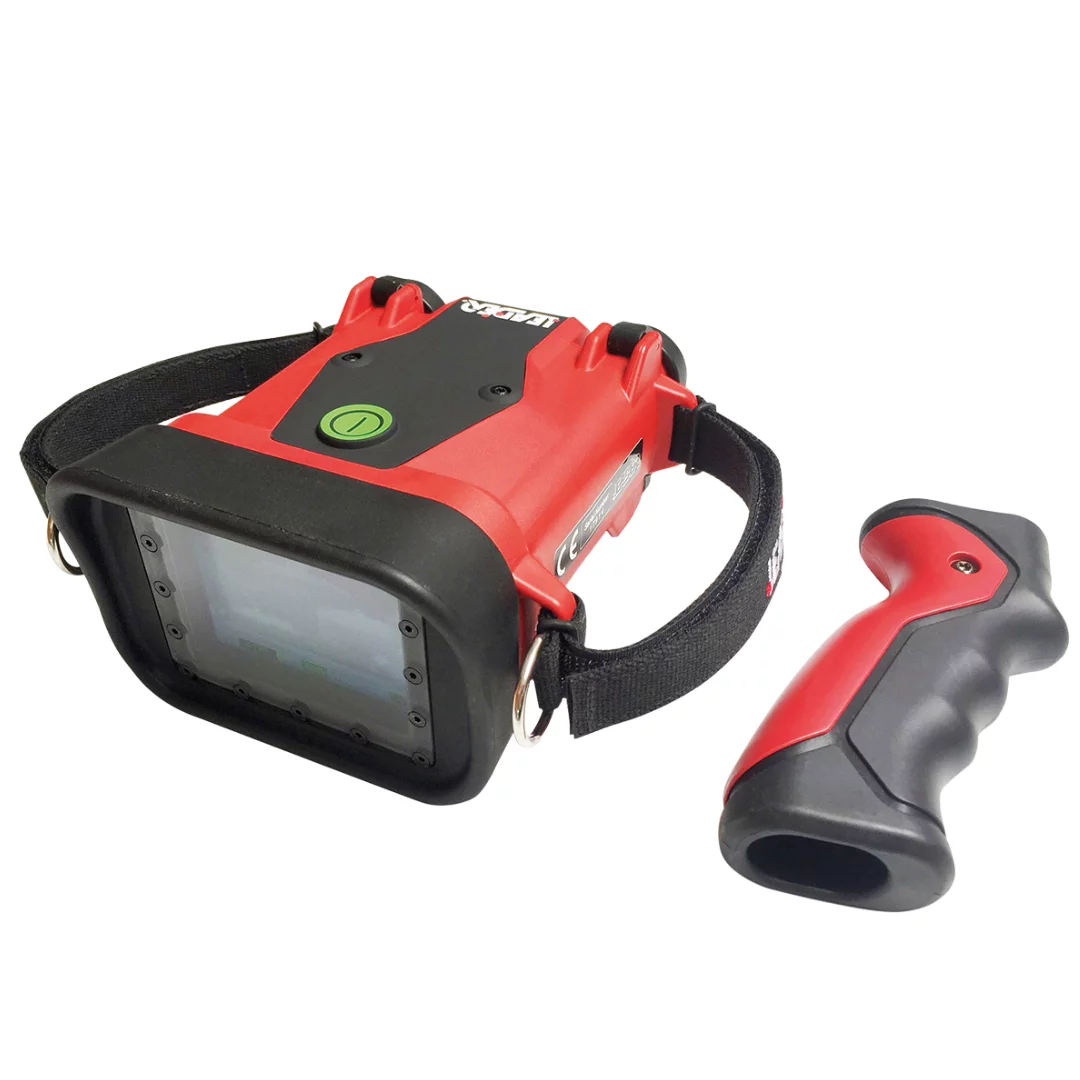

- Optional handle attachment (removable as needed). Dimensions: Height +110mm, Weight +165g
- One large button: Easily operable, even with gloves
- Activation time: <5s
- On/Off function
- Image freeze / Image capture (optional)
- Continuous digital video recording (optional)
Efficient and simple, thanks to its unique operational button, the TIC 3.1 thermal imaging camera is ideal for risk recognition and assessment (fire, heat, firefighting progress) as well as rapid search for missing persons.
Designed for ease of use, it is compact, lightweight, and features a wide temperature measurement range (-40°C to +1150°C).
Highly resistant to thermal stress, rugged use, and harsh conditions, it includes a Germanium protective window to safeguard the lens and electronic components. The camera is equipped with a wide-angle lens (H 51° V 40°) and an ultra-sensitive infrared sensor (17μ Silicon Amorphous aSi 384 x 288), reinforcing its value as a powerful thermal imaging tool for firefighting applications.
Additionally, for cameras with video or photo functionality, an optional wireless transmission kit is available, allowing live image streaming to three digital devices simultaneously (mobile phone, tablet, computer)! This function is especially useful for training sessions or on-site operations, facilitating quick decision-making.
Specifications
TIC 3.1 – 320×240
| Category | Specification |
|---|---|
| Dimensions | 165 (L) x 140 (W) x 85 (H) mm (H195mm with optional pistol grip) |
| Weight | 910g with 2 batteries / 825g with 1 battery (pistol grip +165g, hand strap +35g) |
| Display | 3.5” LCD / 76.800 Pixel Backlighted / Brightness: 800 cd/m² |
| Frequency | 60 Hz Fps |
| T°C Range | -40° to +1150°C |
| Colorization | Standard: Fire Option: Search |
| Housing Material | PUR / Elastomer |
| Drop Test | 2 m on concrete |
| IP | IP67 / 1 meter 30 minutes |
| Heat Resistance | 150°C for 15 min / 260°C for 5 min |
| Sensor Type | 17μ Amorphous Silicon (aSi) Resolution 384x288 |
| T°C Sensitivity | NETD: <40mK (<0.04°C) |
| Optics Material | Carbon Coated Germanium protected by a germanium window |
| Focus | 0,35 m to infinity |
| Visual Field / FOV | H: 51° / V: 40° / D: 65° |
| Power Supply | LiFePO₄ batteries (85g) |
| Running Time | > 8h (2 batt) / > 4h (1 batt) > 6h (2 batt) with non-active video > 5h (2 batt) with recording video |
| Boot Time | < 5 sec |
| Charging Voltage | 12/24 VDC or 100-240 VAC |
| Charging Time | Charging bay: ~ 1h30 Mains charger: 100% in ~ 2h 90% in ~ 1h30, 80% in ~ 1h20 |
| Charging Cycles | > 5000 |
| Memory (optional) | 8 GB internal SD card (8h video or 1000 pics) |
| Warranty | 5 years on camera 6 years on batteries 10 years on thermal sensor 1 year on accessories (chargers, charging bay, etc.) |
