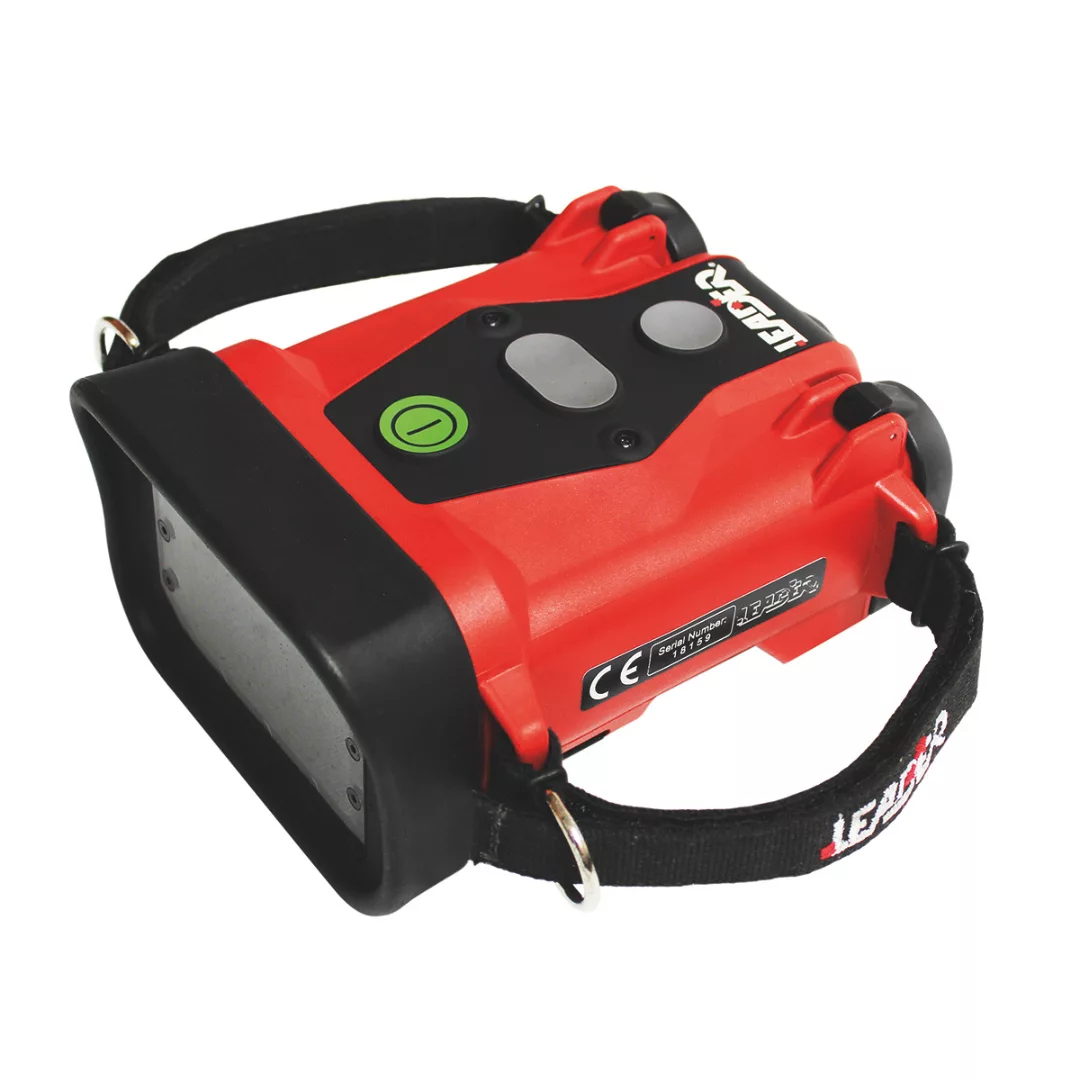

LEADER TIC 3.3
Efficient and versatile. With 3 action buttons.
Particularly suitable for the first attack. LEADER TIC 3.3 offers unbeatable value and best quality, combined with all important features: ideal for firefighting, first attack, search for missing persons.
6-year warranty for the batteries
10-year warranty for the thermal sensor
Technical Features
- Compact 165x140x85mm
- Lightweight: 910g with 2 batteries and side straps
- Large Display 3.5“ for details visibility
- Widest detection range: -40°C to +1150°C
- Video recording, picture capture and image freeze
- Batteries: 6 year warranty, 5000 charging cycle
- Safe batteries (LiFePO4): for high temperature operations
- With ECO BOOST System for extended running time
- 8h running time with 2 batteries
- Germanium window to protect the optics

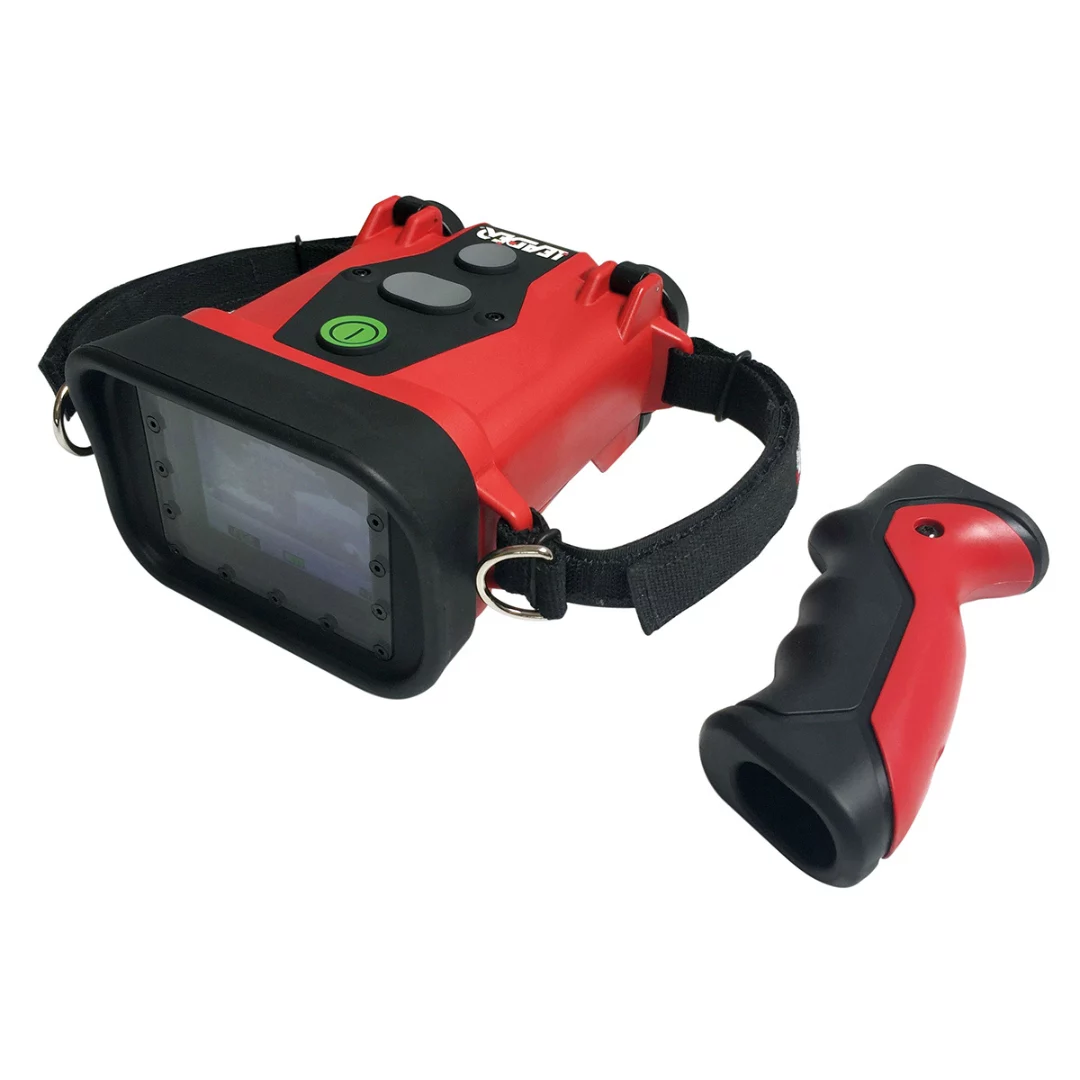

- Removable pistol grip option (H: +110mm – W: +165g)
- Boot time < 5 sec
- 3 large buttons: easy to operate even with gloves
- On/Off function
- Zoom x2 – x4
- Colorization selection (3 or 5 modes)
- Image freeze / picture capture (option)
- Video recording (option)
- Replay picture and video on screen
- Laser pointer (option)
Efficient and versatile because of its 3 action buttons, the Leader TIC 3.3 thermal imaging camera is particularly suitable for indoor fire attacks.
Combined with its compact size (910 g), this TIC has all the important features for fire operations (5 colouring modes, Video recording, Photo shooting, Laser pointer, Zoom, etc.). It incorporates an ultra-sensitive infrared sensor (17μ Silicon Amorphous aSi 384 x 288), a germanium window to protect the internal electronics and a wide-angle lens (H 51° V 40°).
Leader TIC 3.3 thermal imaging camera has the status of a fire attack camera and is ideal for fire operations, search for missing persons and areas on fire.

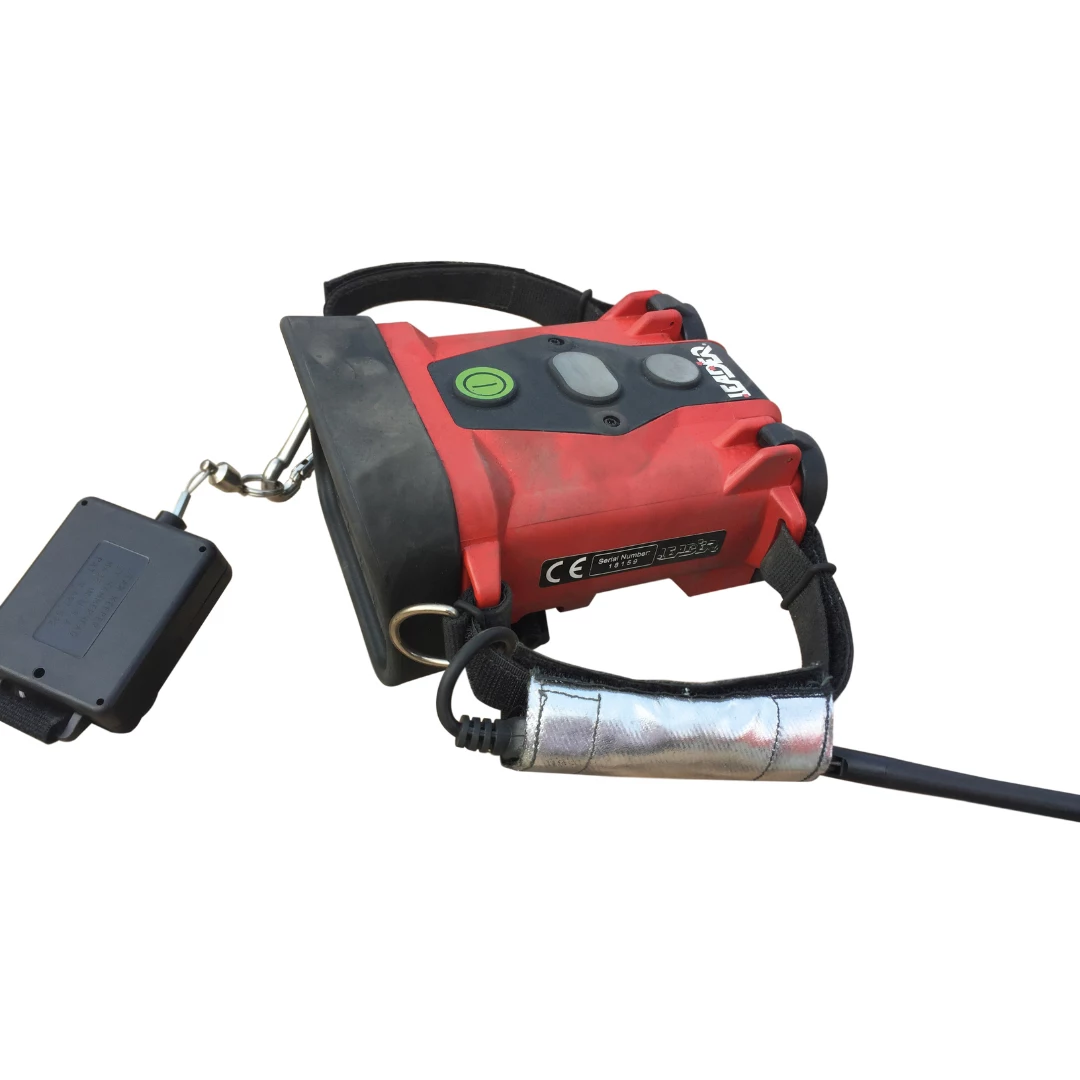

Also, an optional wireless transmission kit can be plugged for live image streaming on 3 digital supports (mobile, tablet, computer) at the same time! This is useful for training purpose or special ops.
Specifications
TIC 3.3 – 320×240
| Category | Specification |
|---|---|
| Dimensions | 165 (L) x 140 (W) x 85 (H) mm (H195mm with optional pistol grip) |
| Weight | 910g with 2 batteries / 825g with 1 battery (pistol grip +165g, hand strap +35g) |
| Display | 3.5” LCD / 76.800 Pixel Backlighted / Brightness: 800 cd/m² |
| Frequency | 60 Hz Fps |
| T°C Range | -40° to +1150°C |
| Colorization | Standard: Fire, Search, Inverse Option: Cold Finder, Multicolor |
| Housing Material | PUR / Elastomer |
| Drop Test | 2 m on concrete |
| IP | IP67 / 1 meter 30 minutes |
| Heat Resistance | 150°C for 15 min / 260°C for 5 min |
| Sensor Type | 17μ Amorphous Silicon (aSi) Resolution 384x288 |
| T°C Sensitivity | NETD: <40mK (<0.04°C) |
| Optics Material | Carbon Coated Germanium protected by a germanium window |
| Focus | 0,35 m to infinity / F/1.3 speed |
| Visual Field / FOV | H: 51° / V: 40° / D: 65° |
| Power Supply | LiFePO₄ batteries (85g) |
| Running Time | > 8h (2 batteries) / > 4h (1 battery) > 6h (2 batteries) with non-active video > 5h (2 batteries) with recording video |
| Boot Time | < 5 sec |
| Charging Voltage | 12/24 VDC or 100-240 VAC |
| Charging Time | Charging bay: ~ 1h30 Mains charger: 100% in ~ 2h 90% in ~ 1h30, 80% in ~ 1h20 |
| Charging Cycles | > 5000 |
| Memory (optional) | 8 GB internal SD card (8h video or 1000 pics) |
| Warranty | 5 years on camera 6 years on batteries 10 years on thermal sensor 1 year on accessories (chargers, charging bay, etc.) |
