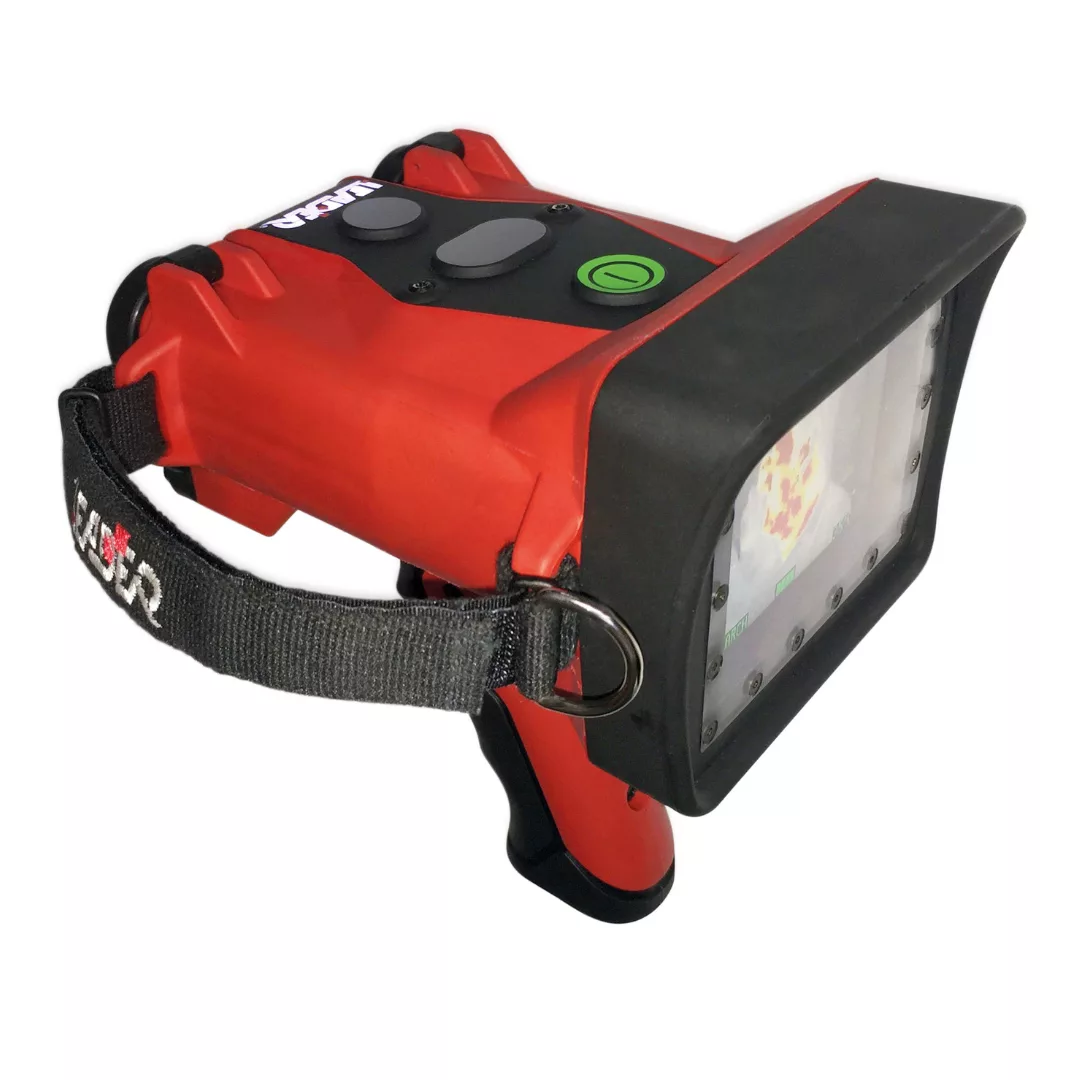

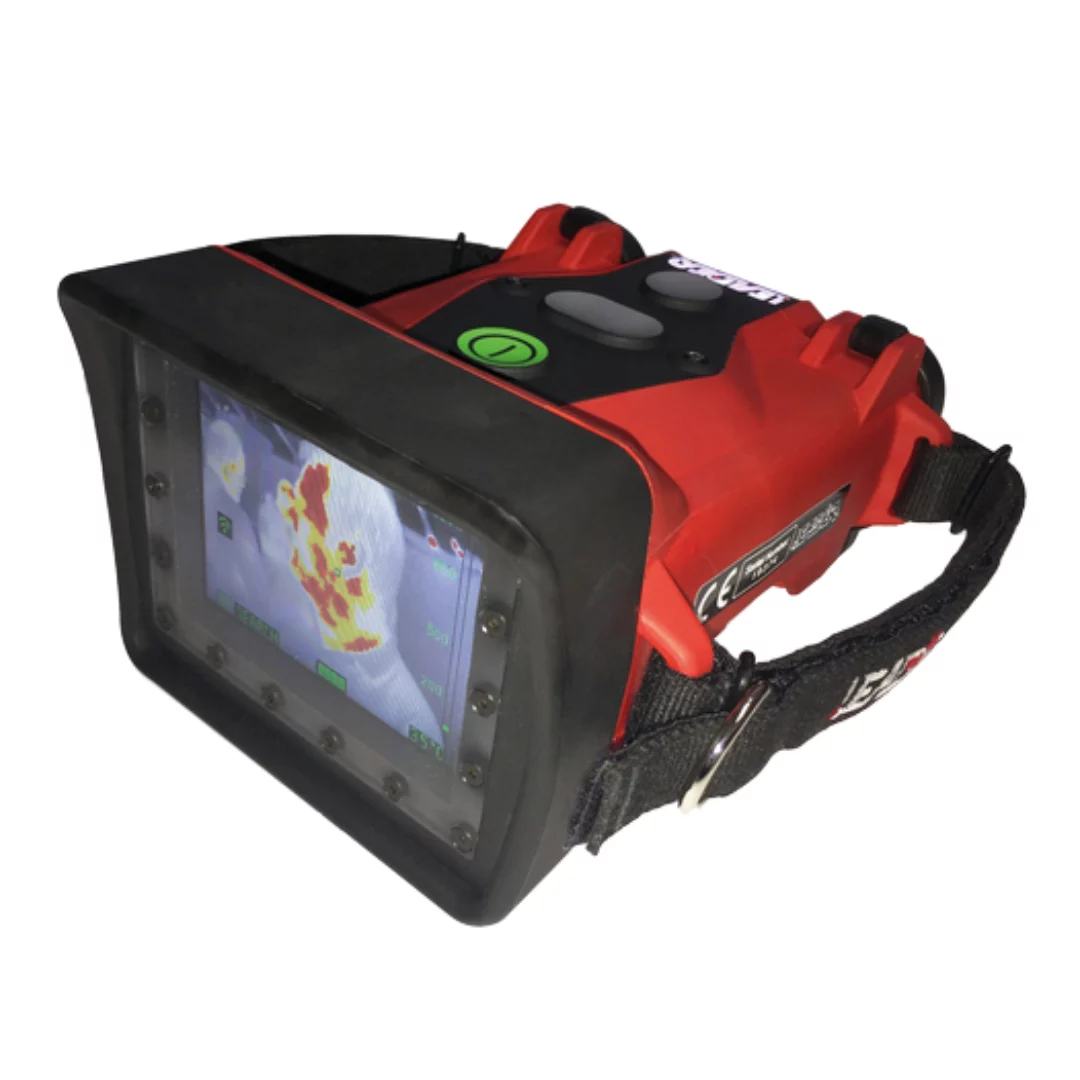

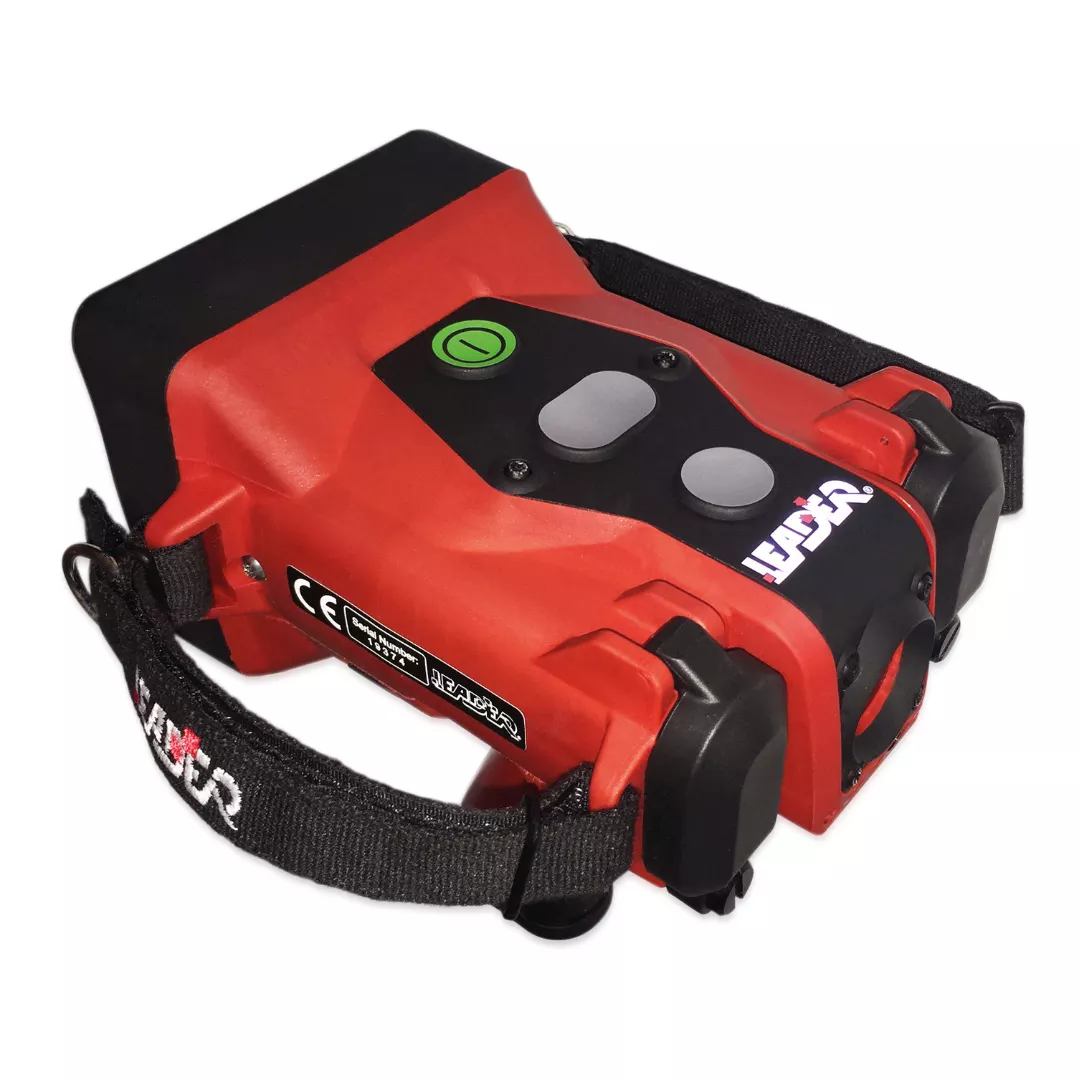

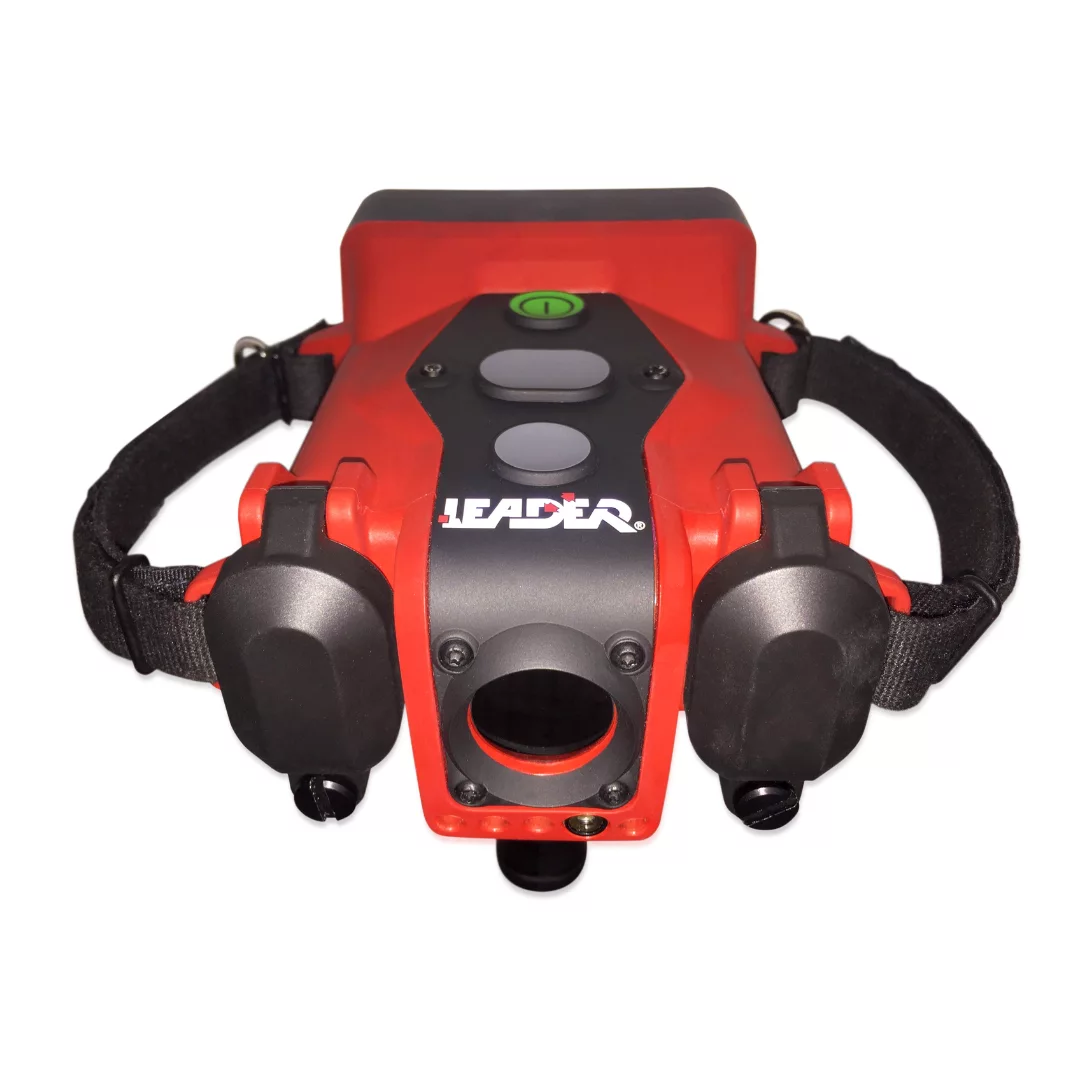

LEADER TIC 4.3
Efficient and versatile.
3 buttons + 4" display.
Particularly suitable for the First attack. LEADER TIC 4.3 offers unbeatable value and best quality, combined with all important features: ideal for firefighting, first attack, search for missing persons.
6-year warranty for the batteries
10-year warranty for the thermal sensor
Technical Features
- Compact 175 x 145 x 97 mm
- Lightweight 990g with 2 batteries and side straps
- Large 4“ display for detailed visibility
- Widest detection range: -40°C to +1150°C
- Video recording, picture capture and image freeze
- Batteries: 6 year warranty, 5000 charging cycles
- Safe batteries (LiFePO4): for high temp operations
- With ECO BOOST System for extended running time
- 8h running time with 2 batteries
- Germanium window to protect the optics
- Removable pistol grip option
- Boot time < 5 sec
- 3 Large buttons: easy to operate even with gloves
- ON/OFF
- Zoom x2 – x4
- Colorization selection (3 or 5 modes)
- Image freeze / picture capture (option)
- Video recording (option)
- Replay picture and video on screen
- Laser pointer (option)
Effective and versatile thanks to its 3 action buttons, and equipped with a large 4” screen, Leader TIC 4.3 thermal imaging camera is particularly suitable for indoor fire attacks.
Combined with its compact size (990 g), this TIC has all the important features for fire operations (5 colouring modes, Video recording, Photo shooting, Laser pointer, Zoom, etc.) It incorporates an ultra-sensitive infrared sensor (17μ Silicon Amorphous aSi 384 x 288), a germanium window to protect the internal electronics and a wide-angle lens (H 51° V 40°).
Leader TIC 4.3 thermal imaging camera has the status of a fire attack camera and is ideal for fire operations, search for missing persons and areas on fire.
Also, an optional wireless transmission kit can be plugged for live image streaming on 3 digital supports (mobile, tablet, computer) at the same time! This is useful for training purpose or special ops.
Specifications
TIC 4.3 – 320×240
| Category | Specification |
|---|---|
| Dimensions | 175 (L) x 145 (W) x 97 (H) mm (H= +110mm with optional pistol grip) |
| Weight | 990g with 2 batteries / 905g with 1 battery (+170g with optional pistol grip) |
| Display | 4“ LCD / 320 x 240 (76.800) px / Backlighted / Brightness: 800cd/m2 |
| Frequency | 60 Hz Fps |
| T°C Range | -40° to +1150°C |
| Colorization | Standard: Fire, Search, Inverse Option: Cold Finder, Multicolor |
| Material | PUR / Elastomer |
| Drop Test | 2 m on concrete |
| IP | IP67 / 1 meter 30 minutes |
| Heat Resistance | 150°C for 15 min / 260°C for 5 min |
| Sensor Micro bolometer type |
Uncooled 17µ Amorphous Silicon (aSi) Resolution 384 x 288 (110 592 px) |
| Spectral range | 7 - 14 μm |
| Temperature Sensitivity | NETD: <40mK (<0.04°C) |
| Optics Material | Carbon Coated Germanium protected by a germanium window |
| Focus | 0,35 m to infinity / F1.3 speed |
| Visual Field / FOV | H: 51° / V: 40° / D: 65° |
| Power Supply | LiFePO4 rechargeable batteries (85g) |
| Running time (20°C ) with Eco-Boost-System since October 2018 |
> 8h (2 batt) / > 4h (1 batt) > 6h (2 batt) with non-active video > 5h (2 batt) with recording video |
| Boot Time | < 5 sec |
| Charging Voltage | 12/24 VDC or 100-240 VAC |
| Charging Time (for 2 batt / consider half of 1 batt) |
Charging bay: ~ 1h30 Mains charger: 100% in ~ 2h, 90% in ~1h30, 80% in ~1h20 |
| Charging Cycles | > 5000 |
| Memory (optional) | 8 GB internal SD card (8h video or 1000 pictures) |
| Warranty | 5 years on camera 6 years on batteries 10 years on thermal sensor 1 year on accessories (chargers, charging bay, etc.) |
