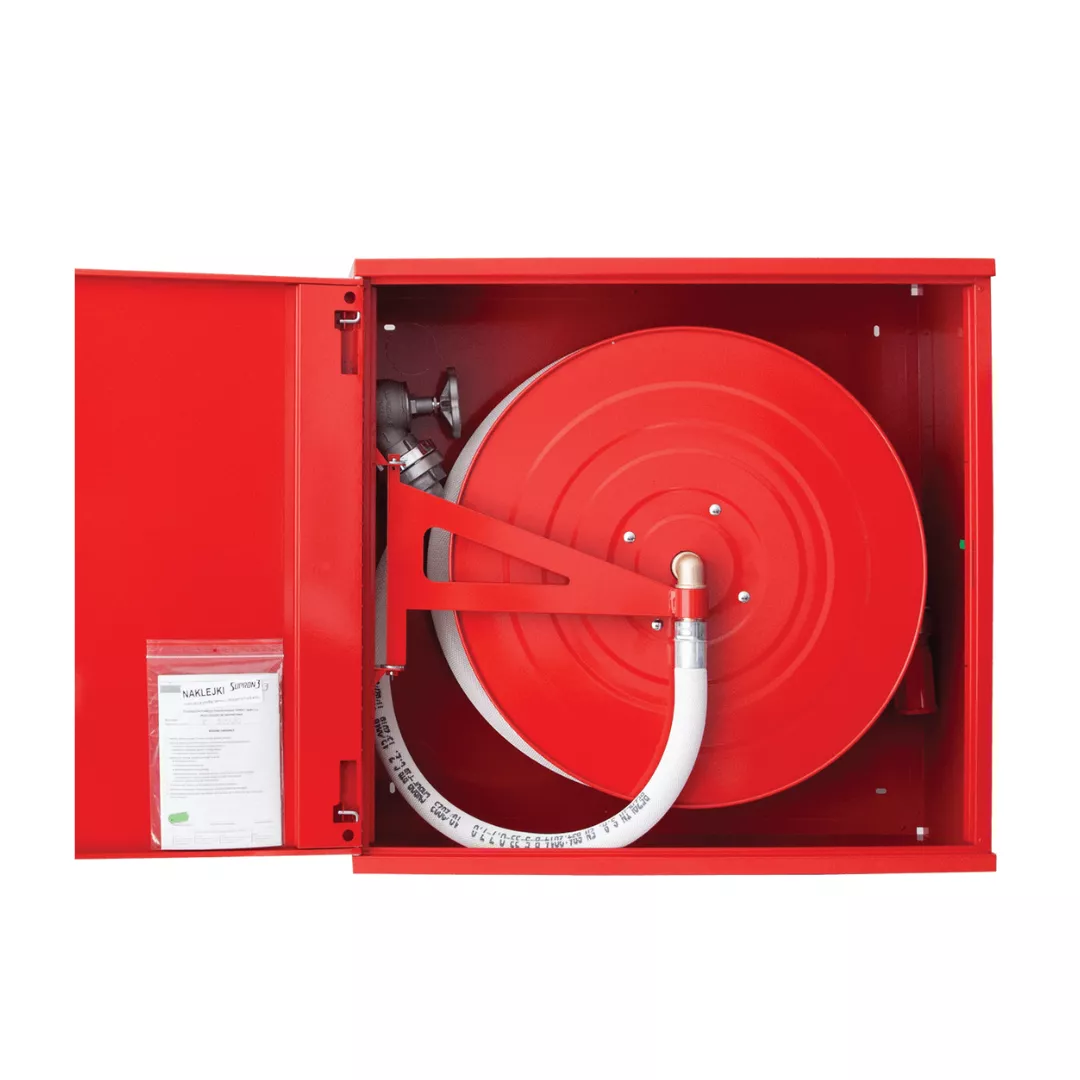

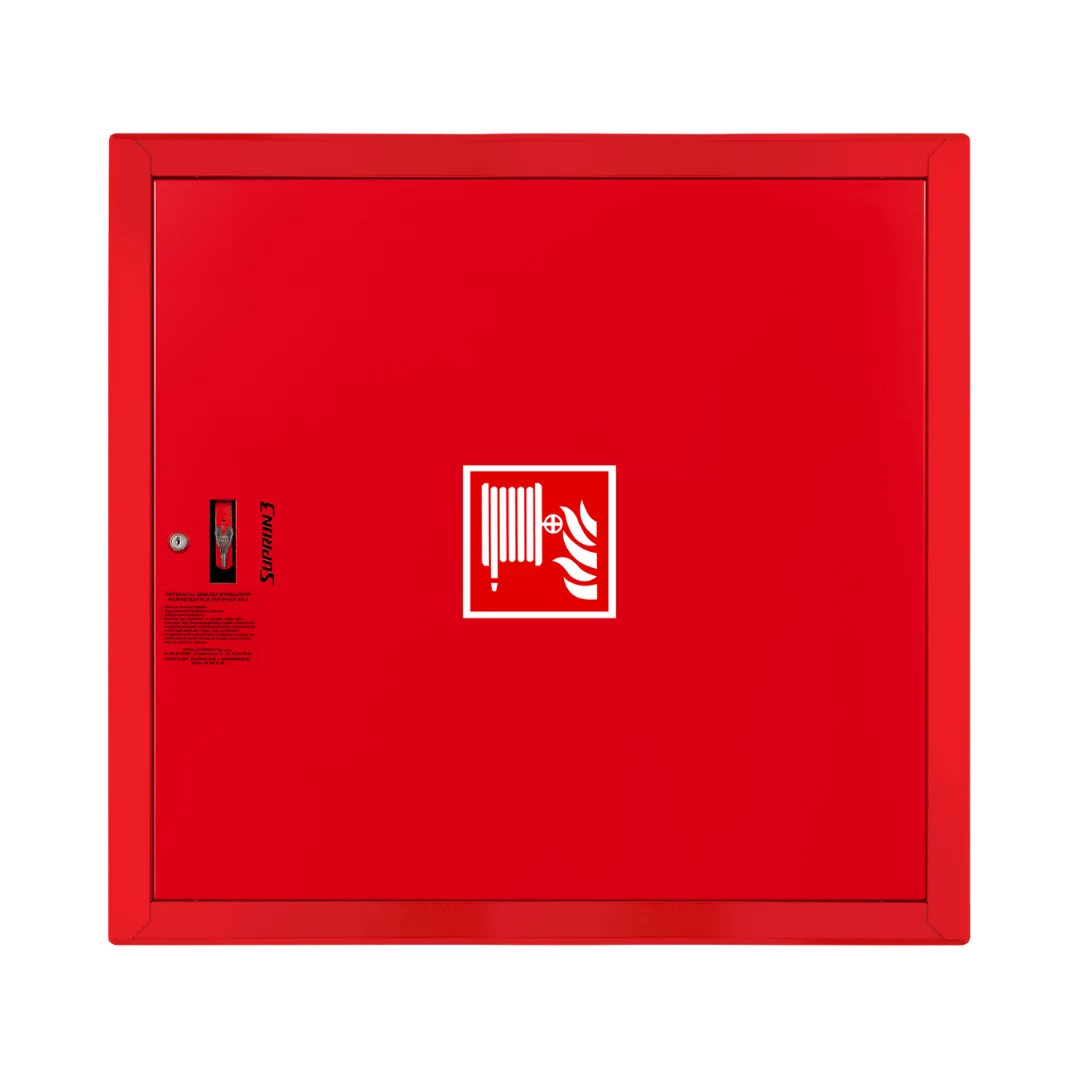

INTERNAL HYDRANT DN33 UNIVERSAL
Hydrant weight: about 35 kg
HYDRANT DIMENSION
Height: 750 mm
Width: 800 mm
Depth: 250 mm
RECESS DIMENSION
Height: 770 mm
Width: 820 mm
Depth: 260 mm
TECHNICAL FEATURES
S-33-Z30-OFP-XXXX
Type: Mounted on the wall
Hose length: 30m
Lock: Two types of locking
Supports/bases [height x depth]: 700 x 250
Number of supports/bases: 2 pcs.
S-33-Z20-OFP-XXXX
Type: Mounted on the wall
Hose length: 20m
Lock: Two types of locking
Supports/bases [height x depth]: 700 x 250
Number of supports/bases: 2 pcs.
S-33-W30-OFP-XXXX
Type: Mounted in a recess
Hose length: 30m
Lock: Two types of locking
Supports/bases [height x depth]: 700 x 235
Number of supports/bases: 2 pcs.
S-33-W20-OFP-XXXX
Type: Mounted in a recess
Hose length: 20m
Lock: Two types of locking
Supports/bases [height x depth]: 700 x 235
Number of supports/bases: 2 pcs.
