TELEDATA ONE

Fire alarm control panel 1 loop expandable to 9 addressable with touch screen

Expressions of interest

    * Required fields

    I consent to the processing of my personal data in accordance with the EU Regulation Number. 2016/679

    TELEDATA ONE_1
    TELEDATA ONE_2
    TELEDATA ONE_3
    TELEDATA ONE_4

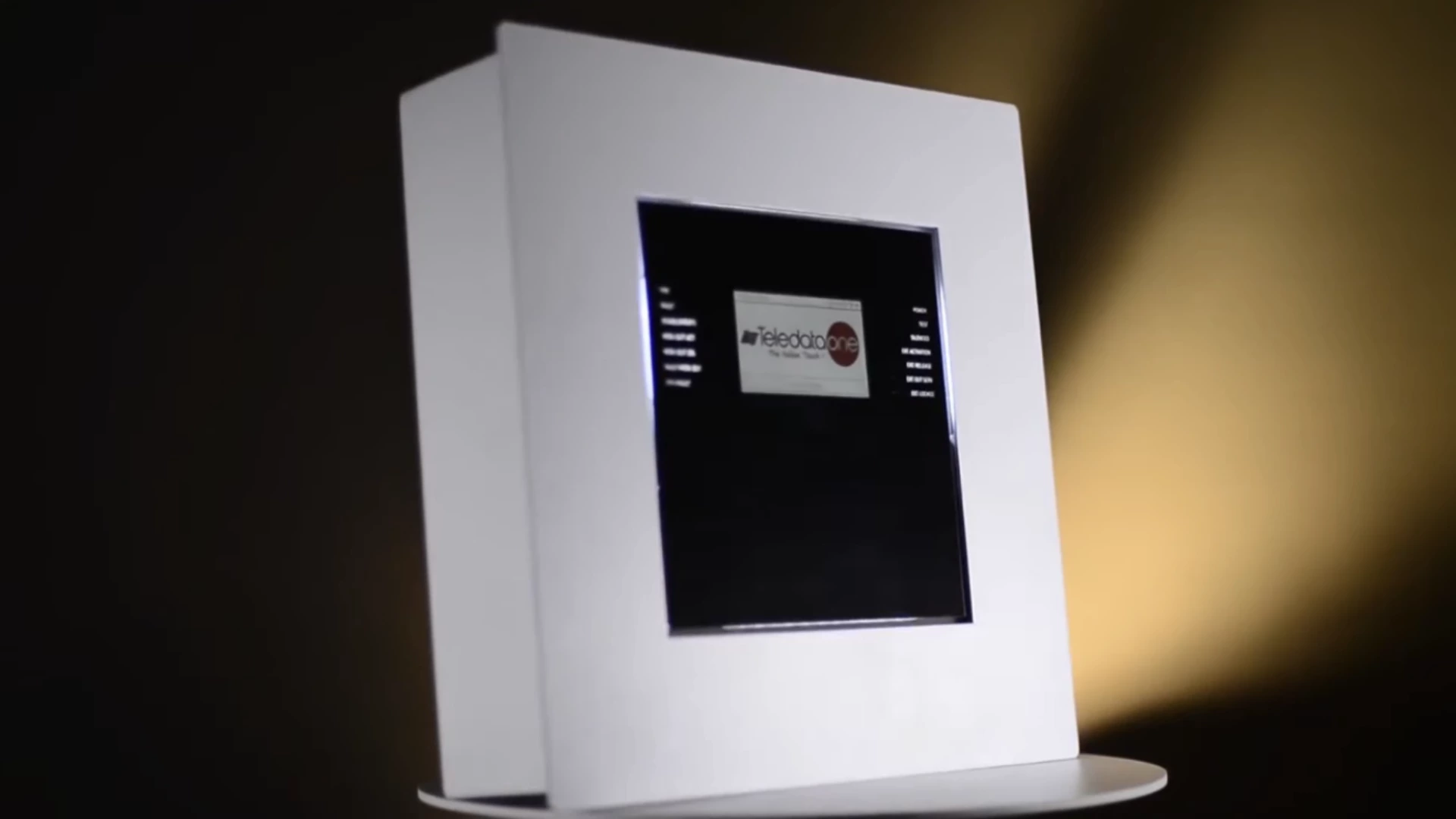

    Unparalleled design

    TeledataOne is the fire alarm control panel of the future completely made in Italy.

    With touch screen

    First alarm control panel with touch-screen technology certified EN 54-2 and 54-4. The GUI interface is user friendly, you can program the panel without the use of any manual.

    With three access levels - expandable up to 9 loops

    There are three access levels which facilitate the ease of use of each type of operation (installation, maintenance and End User visualization). TeledataOne is expandable up to 9 loops. With TeledataOne you can connect up 2160 devices, in fact each loop supports 240 devices.

    If you want to connect more loop devices you can create a ring of One through the OneRing card, so your building will be even more secure.

    Historical events

    TeledataOne allows to use addressable wireless devices and wired devices in the same system. The panel records each alarm and fault, so they are visible into “historical events”, you can filter and search each event by date, events type, zones and loops.

    All the historical events and the diagnostics of all the devices can be exported easily with a USB pendrive from the TeledataOne Panel.

    Fully customized

    TeledataOne has a unique stylish design, the mechanical chassis is also available in different colors. The high-end technological background effect with different LED colors can be added or removed. Also, on request, Teledata allows you to customize the panel inserting the digital logo of your company on the touch screen.

    TeledataOne is an international product, it manages up to 111 languages and their alphabets.

    Teledata One Cloud

    To increase even more the ease of use for the programming of the TeledataOne panel there is OneCloud, the new area of commissioning! Thanks to OneCloud you can configure the panel with any type of device (PC, smartphone, tablet…) comfortably, far from central panel, and import the configuration on your TeledataOne easily with a USB pendrive.

    Certifications

    APPLUS CERTIFICATION N° 0370-CPR-3635
    2004/108/EC EMC
    2006/95/EC Low voltage
    UNI EN 54-2 Control and signalling unit
    UNI EN 54-4 (A2:2006) Power supply

    Technical Specifications & System Functions

    • Addressable fire alarm panel with 32‑bit microprocessor.
    • LCD touchscreen display (480×272 TFT 4.3”).
    • Back light on/off and three settable colors.
    • 1 addressable loop, expandable up to 9 loops (with 4 ONE2) configurable as open or closed.
    • Digital protocol.
    • Frontal LEDs with three settable colors: white, blue and green.
    • Each loop supports 240 addressable devices.
    • Short‑cut circuit protection.
    • 14 front LED for events.
    • Silenceable and excludable signaling buzzer.
    • 1 monitored output for siren or dialer (24Vdc 1A).
    • General output dry contact 1A / 30VDC.
    • 1 general open collector output.
    • 1 RS485 line for peripherals (maximum current value).
    • 1 RS232 and 1 micro USB for programming and remote management.
    • Ethernet card 10 Mbit/s (optional ONECONNECT).
    • 56 LED zone (option card ONE56).
    • Ring network card between central units (optional ONERING tab).
    • Maximum 14 remote control panels can be connected to the RS485 BUS, max 800 m distance (ONEKBD).
    • With four additional ONE2 modules, supplementary power supply is required (ONEPW).
    • Batteries: 7.2A / 7.5A / 17A / 18A.
    • Automatic test of battery efficiency and battery disconnection in case of deep discharge.
    • Auxiliary power output 24 Vdc 500 mA with shortcut protection.
    • Dimensions: 410 x 410 x 120 mm.
    • Weight: 6,1Kg (without batteries).
    • Power supply: 230Vac 50/60 Hz.
    • Current absorption: 300~500mA (depending on
      number of loops).
    • Operating Temperature: 0C°~+50C°.
    • 240 addressable devices for one loop.
    • Hybrid systems wired/radio.
    • 192 programmable zones.
    • 192 logic functions.
    • More than 1000 events reported into archive.
    • Internal clock.
    • Auto programming analog devices on loop.
    • Auto addressing analog devices on loop*.
    • Mapping analog devices on the loop.
    • Ring connection with other stations using a fault tolerant network.
    • Multilingual management.
    • Customizable with personal logo.
    • Management of detectors and different types of analog modules:
      – Managed thermal and optical detectors in the same loop:
      – Input modules
      – Output modules
      – Buttons addressed
      – Analogue addressable sirens multiprotocol
    • Colorful LED selectable.
    • Programmable locally or remotely by dedicated software.
    • Multi‑Protocol Teledata and Apollo.
    • MODBUS TCPIP / MODBUS RTU protocol over IP (TCP option card MCGTWMDB).
    • Certified product standards EN54‑2 and EN54‑4.
    DATA SHEET
