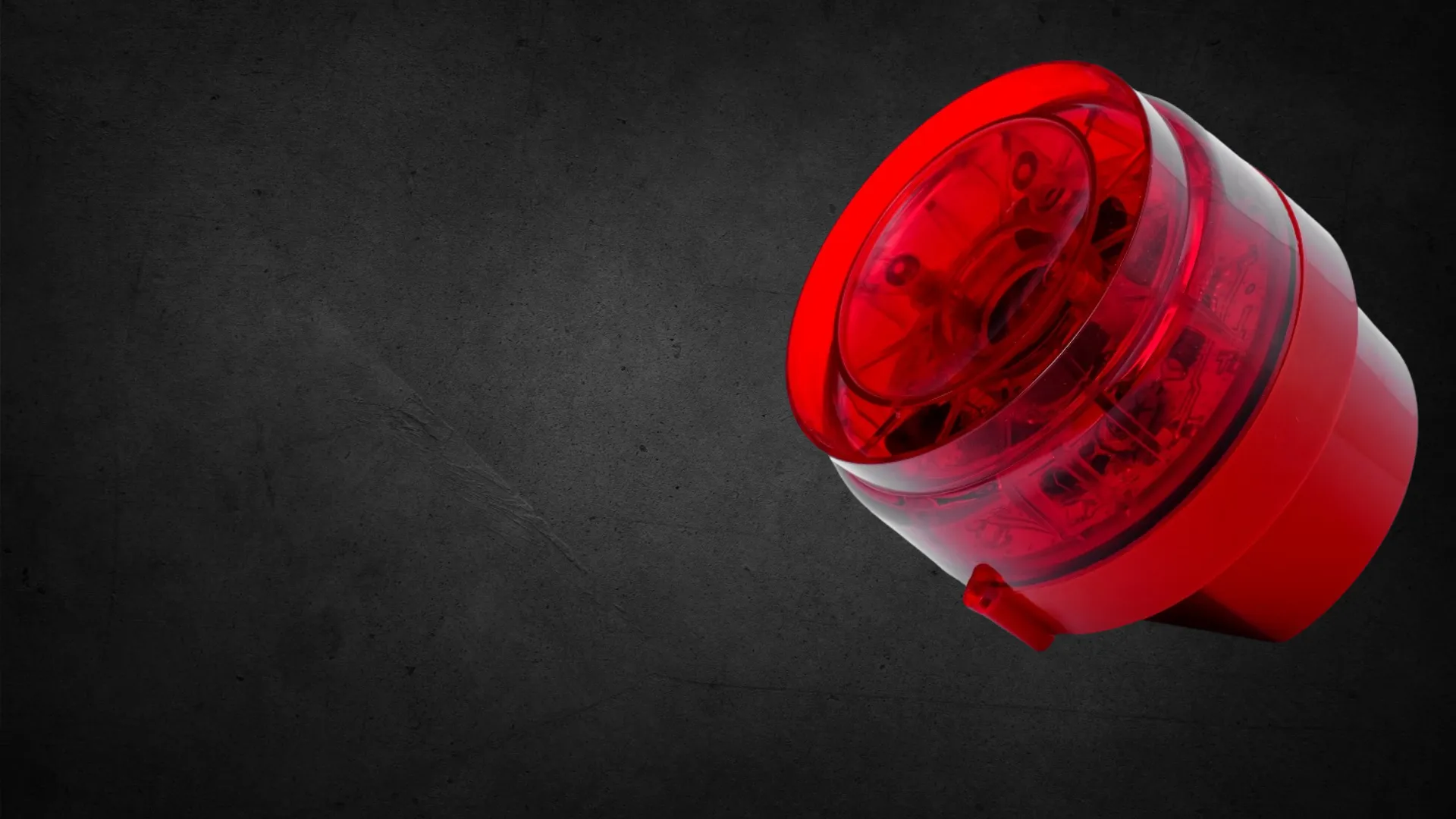

TELEDATA SOUND 101
Addressed siren EN 54 3 with flashing light and short-circuit isolator
Functional Features
Sound emission can be manually adjusted on the sounder itself. At the moment of activation, groups of sounders can be synchronized. Each sounder is provided with integrated isolator circuit, that automatically takes action in case of need. Addresses can be programmed by means of the programmer or with the addressing function of Teledata smoke detection panels.
Technical Features
- Red plastic enclosure
- Provided with integrated isolator circuit
- Power supply: 18–27V
- Average power consumption: 130 μA
- Alarm consumption: 27 mA
- Sounder output: 107 dB
- Initiation tripping time: 2 seconds
- IP degree: IP65
- Maximum cable cross section: 2.5 mm²
- Operating temperature: –10°C to +55°C
- Maximum humidity: 85% non‑condensing
- Dimensions: diameter 100 mm, height 92 mm
- Weight: 190 g
