LONG RANGE LEADER TIC 3.1 LR1000
Efficient and small .
1 button + 3.5“ display.
It is the ideal choice for the first-response team arriving at the scene. With top-tier quality, the LONG RANGE LEADER TIC 3.1 LR1000 thermal imaging camera is perfect for risk identification and assessment (fire, heat, firefighting progress) as well as rapid search for missing persons.
6-year warranty for the batteries
10-year warranty for the thermal sensor
Technical Features
- Compact 165 x 140 x 85 mm
- Lightweight 920g with 2 batteries and side straps
- Large 3.5“ display for details visibility
- Detection of a person at 1000m (recognition at 200m)
- Housing: Dark grey
- Widest detection range: -40°C to +1150°C
- 1 colorization mode – Optional capability to add a second mode
- Picture capture and / or Video recording (option)
- Batteries: 6 year warranty, 5000 charging cycles
- Safe batteries (LiFePO4): for high temperature operations
- With ECO BOOST System for extended running time
- Up to 8h running time with 2 batteries
- Germanium window to protect the optics
- Boot time < 5 sec
- 1 large button: easy to operate even with gloves
- ON/OFF Function
- Image freeze & picture capture (option)
- Continuous video recording (option)

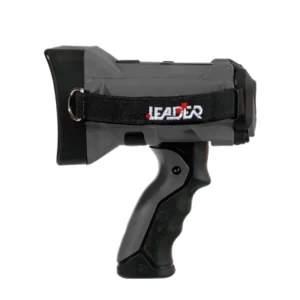

- Removable pistol grip (option)
- Wireless transmission kit (option)
Efficient and simple because of its unique action button, Leader TIC 3.1 LR1000 Long Range thermal imaging camera is particularly suitable for Search & Rescue operations in large open field such as sea, mountain, country side, desert…
Compact, lightweight and incorporating a wide range of temperature measurement (-40°C to +1150°C), it was designed for ease of use. Ideal for rescue operations, search for missing persons, rescue or surveillance teams searching for and locating people at night, in rough or smoky environments.
Resistant to fire, robust, with germanium window to protect the internal electronics, using a wide-angle lens (H 51° V 40°) and an ultra-sensitive infrared sensor (17μ Silicon Amorphous aSi 384 x 288), Leader TIC 3.1 LR1000 confirms its status of thermal imaging camera for field
For thermal cameras that have Video or Picture function, a wireless transmission kit is available as an option to be plugged for streaming live the images on 3 digital devices simultaneously (mobile, tablet, computer)! It is useful for trainings or special operations.
Specifications
LEADER TIC 3.1 LR1000
| Category | Specification |
|---|---|
| Dimensions | 165 (L) x 140 (W) x 85 (H) mm (+110mm with optional pistol grip) |
| Weight | 920g with 2 batteries / 835g with 1 battery (pistol grip +170g) |
| Display | 3.5“ LCD / 320 x 240 (76.800 Pixel) Backlighted / Brightness: 800 cd/m2 |
| Frequency | 60 Hz Fps |
| T°C Range | -40° to +1150°C |
| Colorization | Standard: Fire Option: Search |
| Housing Material | PUR / Elastomer |
| Drop Test | 2 m on concrete |
| IP | IP67 / 1 meter 30 minutes |
| Heat Resistance | 150°C for 15 min / 260°C for 5 min |
| Sensor Type | Uncooled 17µ Amorphous Silicon (aSi) Resolution 384 x 288 |
| T°C Sensitivity | NETD: <40mK (<0.04°C) |
| Optics Material | Carbon Coated Germanium protected by a germanium window |
| Lens | LR1000 = 35 mm |
| Focus | LR1000 = 5m to infinity / F/1.5 speed |
| Visual Field / FOV | LR1000 = H:9.4°/ V: 7°/ Diagonal: 11.7° |
| Power Supply | LiFePO₄ batteries (85g) |
| Running time (20°C) with Eco-Boost-System since October 2018 |
> 8h (2 batt) / > 4h (1 batt) > 6h (2 batt) with non-active video > 5h (2 batt) with recording video |
| Boot Time | < 5 sec |
| Charging Voltage | 12/24 VDC or 100-240 VAC |
| Charging time (for 2 batt / consider half for 1 batt) | Charging bay: ~ 2h Mains charger: 100% in ~ 2h 90% in ~ 1h30, 80% in ~ 1h20 |
| Charging Cycles | > 5000 |
| Memory (optional) | 8 GB internal SD card (8h video or 1000 pics) |
| Warranty | 5 years on camera 6 years on batteries 10 years on thermal sensor 1 year on accessories (chargers, charging bay, etc.) |
