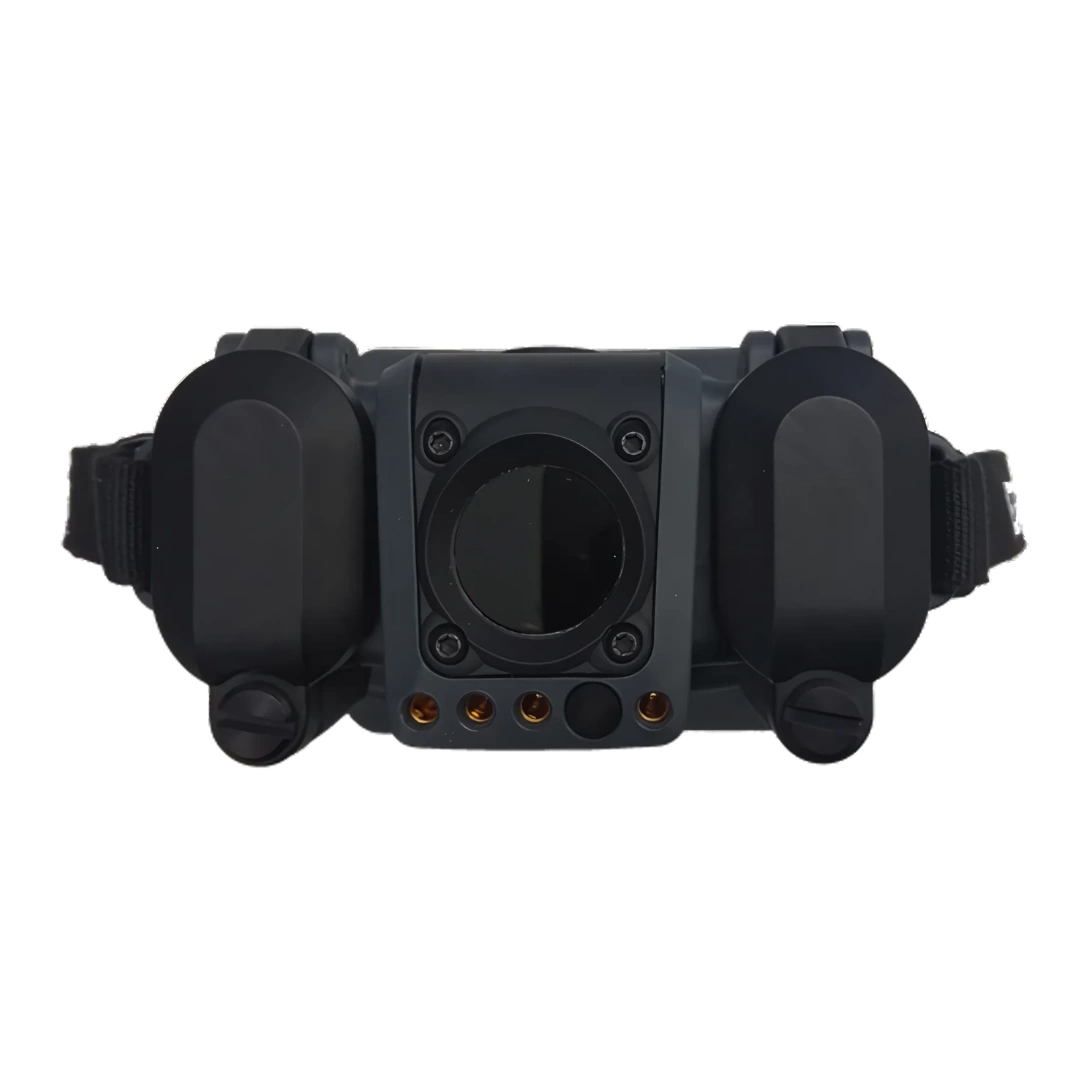

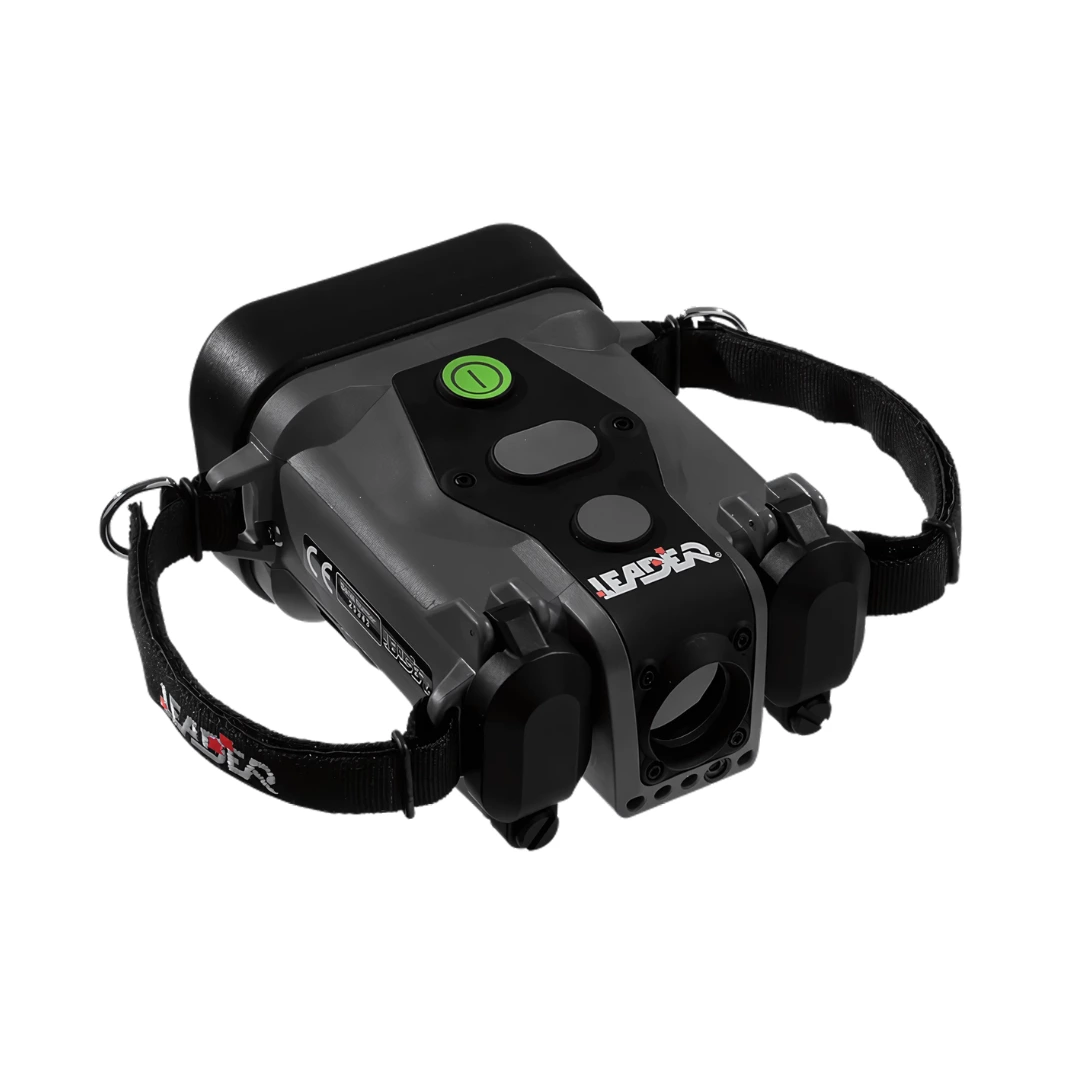

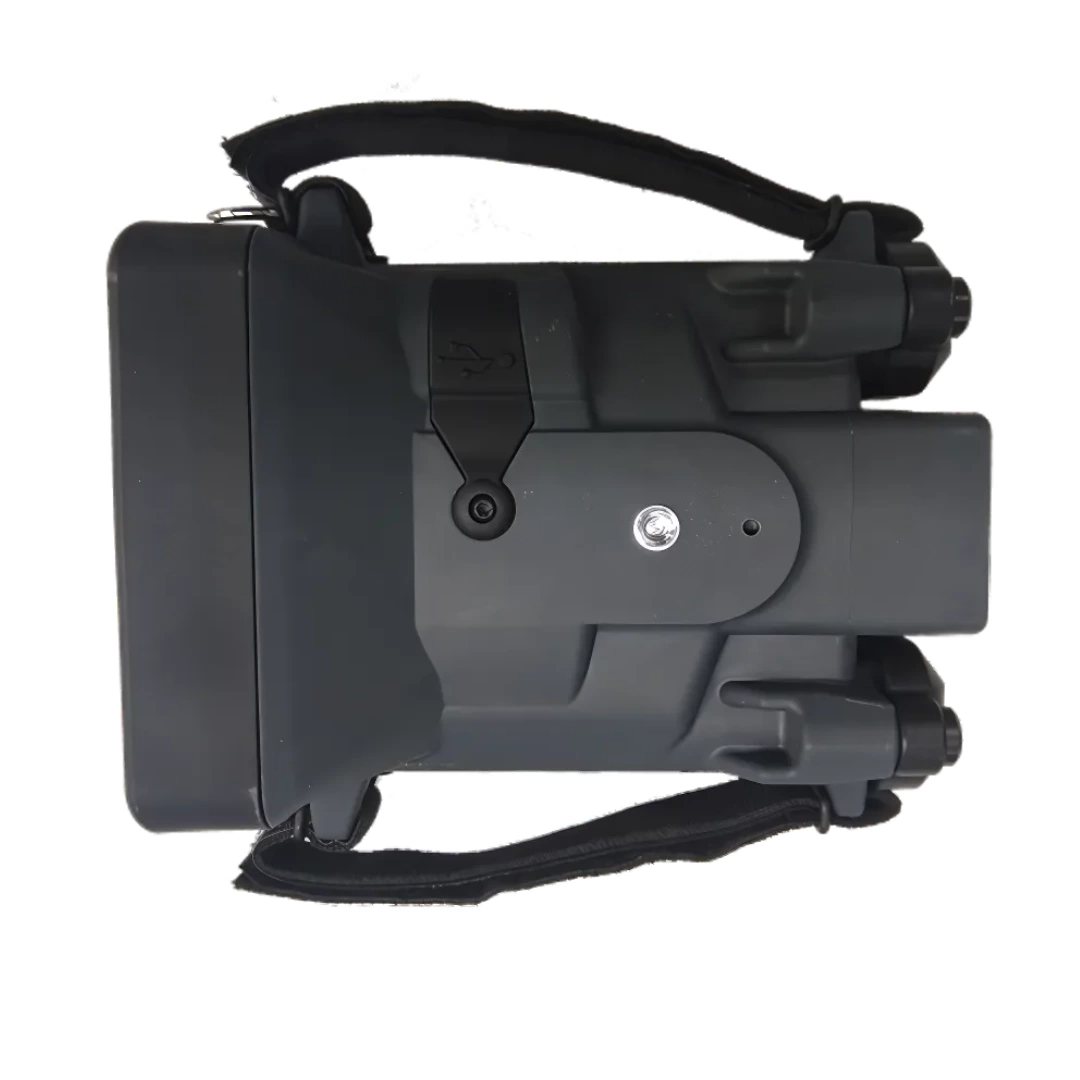

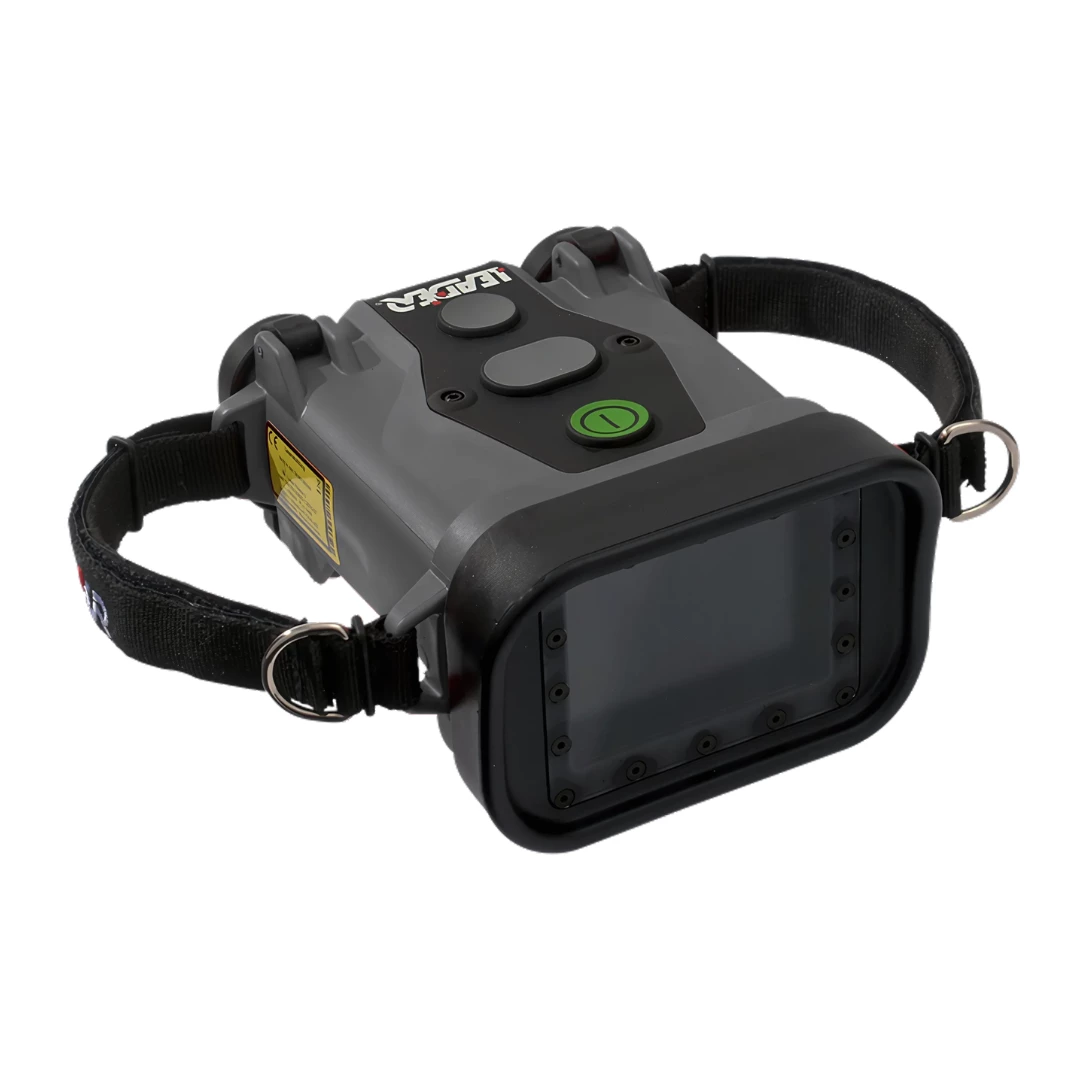

LONG RANGE LEADER TIC 3.3 LR1000
Efficient and versatile.
3 buttons + 3.5" display.
It is the ideal choice for the first-response team arriving at the scene. With top-tier quality, the LONG RANGE LEADER TIC 3.3 LR1000 thermal imaging camera is perfect for risk identification and assessment (fire, heat, firefighting progress) as well as rapid search for missing persons.
6-year warranty for the batteries
10-year warranty for the thermal sensor
Technical Features
- Compact and lightweight
- LR1000 – Detection of a person at 1000m (recognition at 200m)
- Housing: Dark grey
- Wide detection range: -40°C to +1150°C
- Up to 5 colorization modes
- Picture Capture and / or Video recording (option)
- Batteries: 6 year warranty, 5000 charging cycle
- Safe batteries (LiFePO4): No explosion at high temp operations
- Up to 8h running time (2 batteries) with Eco-Boost-System
- Germanium window to protect the optics
- Boot time < 5 sec
- 3 large buttons: easy to operate even with gloves
- Function ON/OFF
- Zoom x2 – x4
- Image freeze / picture capture (option)
- Video recording (option)
- Replay picture and video on screen
- Laser pointer (option)

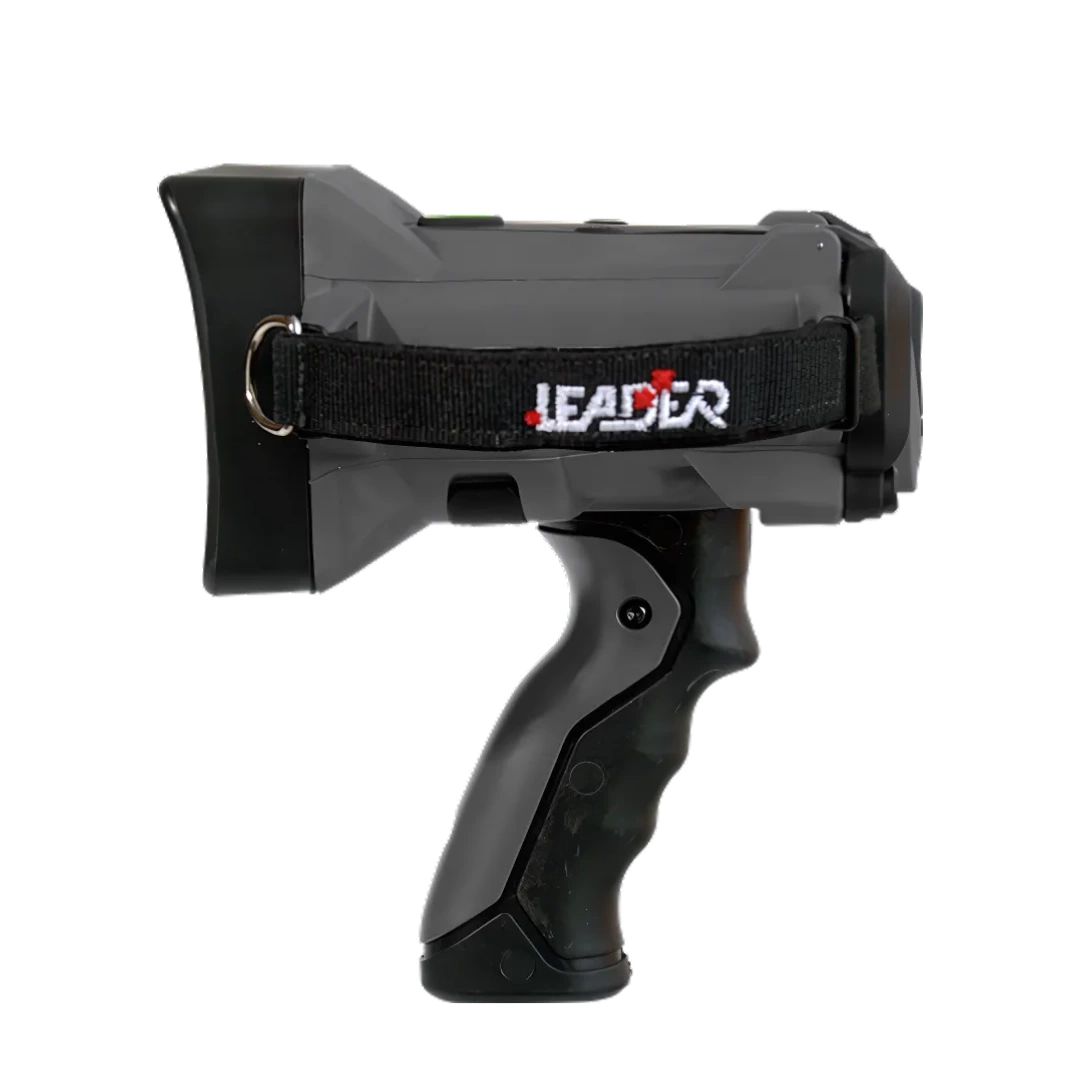

- Removable pistol grip option
- Wireless transmission kit (option)
Efficient and versatile because of its 3 action buttons, the Leader TIC 3.3 LR1000 Long Range thermal imaging camera is particularly suitable for Search & Rescue operations in large open fields such as sea, mountain, country side, desert…
Combined with its compact size, this TIC has all the important features for rescue operations, search for missing persons, rescue or surveillance teams searching for and locating people at night, in rough or smoky environments (5 colouring modes, Video recording, Photo shooting, Laser pointer, Zoom, etc.) It incorporates an ultra-sensitive infrared sensor (17μ Silicon Amorphous aSi 384 x 288), a germanium window to protect the internal electronics and a wide-angle lens (H 51° V 40°).Leader TIC 3.3 LR1000 Long Range thermal imaging camera has the status of a field attack camera.
Also, an optional wireless transmission kit can be plugged for live image streaming on 3 digital supports (mobile, tablet, computer) at the same time! This is useful for training purpose or special ops.
Specifications
LEADER TIC 3.3 LR1000
| Category | Specification |
|---|---|
| Dimensions | 165 (L) x 140 (W) x 85 (H) mm (+110mm with optional pistol grip) |
| Weight | 920g with 2 batteries / 835g with 1 battery (+170g with pistol grip) |
| Display | 3.5“ LCD / 76.800 Pixel Backlighted / Brightness: 800 cd/m2 |
| Frequency | 60 Hz Fps |
| Temperature Range | -40° to +1150°C |
| Colorization | Standard: Fire, Search, Inverse Option: Cold Finder, Multicolor |
| Housing Material | PUR / Elastomer |
| Drop Test | 2 m on concrete |
| IP | IP67 / 1 meter 30 minutes |
| Heat Resistance | 150°C for 15 min / 260°C for 5 min |
| Sensor Type | 17µ Amorphous Silicon (aSi) Resolution 384x288 |
| Spectral range | 7 - 14 μm |
| Temperature sensitivity | NETD: <40mK (<0.04°C) |
| Optics Material | Carbon Coated Germanium protected by a germanium window |
| Lens | LR1000 = 35 mm |
| Focus | LR1000 = 5m to infinity / F/1.5 speed |
| Visual Field / FOV | LR1000 = H:9.4°/ V: 7°/ Diagonal: 11.7° |
| Power Supply | LiFePO₄ batteries (85g) |
| Running time (20°C) with Eco-Boost-System since October 2018 |
> 8h (2 batt) / > 4h (1 batt) > 6h (2 batt) with non-active video > 5h (2 batt) with recording video |
| Boot Time | < 5 sec |
| Charging Voltage | 12/24 VDC or 100-240 VAC |
| Charging time (for 2 batt / consider half for 1 batt) | Charging bay: ~ 2h Mains charger: 100% in ~ 2h 90% in ~ 1h30, 80% in ~ 1h20 |
| Charging Cycles | > 5000 |
| Memory (optional) | 8 GB internal SD card (8h video or 1000 pics) |
| Warranty | 5 years on camera 6 years on batteries 10 years on thermal sensor 1 year on accessories (chargers, charging bay, etc.) |
