INTERNAL HYDRANT DN52 WITH CONSTANT FLOW, WITH REEL AND PLACE FOR FIRE EXTINGUISHER

Expressions of interest

    * Required fields

    I consent to the processing of my personal data in accordance with the EU Regulation Number. 2016/679

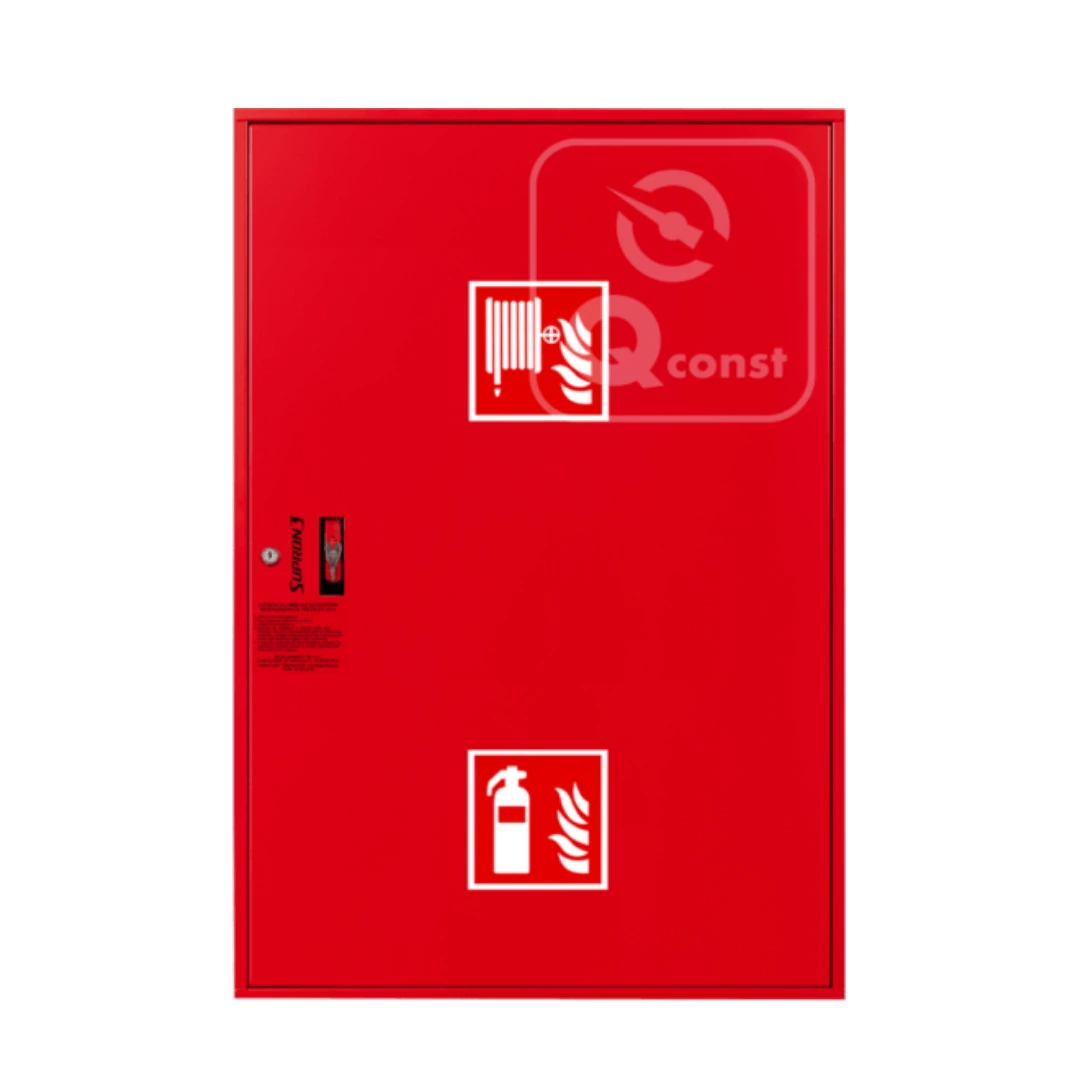

    Internal hydrant with constant flow DN52 with reel and place for fire extinguisher

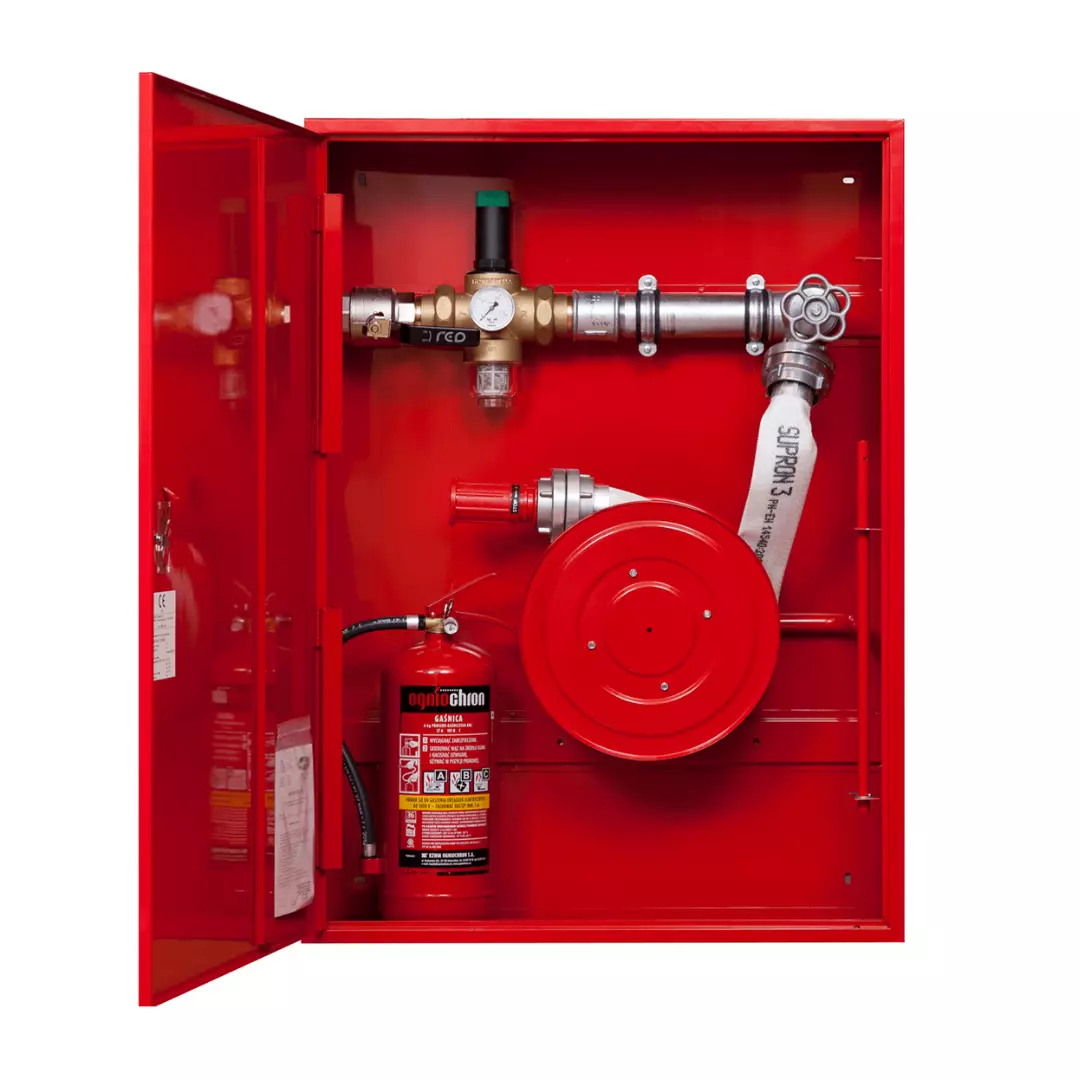

    Internal hydrant with constant flow DN52 with reel and place for fire extinguisher_B

    HYDRANT DIMENSION
    Height: 1100 mm
    Width: 800 mm
    Depth: 250 mm

    TECHNICAL FEATURES

    Type:  Mounted on the wall

    Hose length: 20m

    Lock: Two types of locking

    Supports/bases [height x depth]: 450 x 250

    Number of supports/bases: 2 pcs.

    Test results of internal hydrant PN-EN 671-2C-1-52/20 QConst with fixed setting of the output pressure (factory setting)

    Water flow rate Type of water current Supply pressure values
    Q [dm3/min] 0,5 MPa 1,0 MPa 1,5 MPa
    Compact jet 155,7 157,7 158,1
    Dispersed jet 172,0 184,0 178,0

    Technical drawings & Instructions
