Description

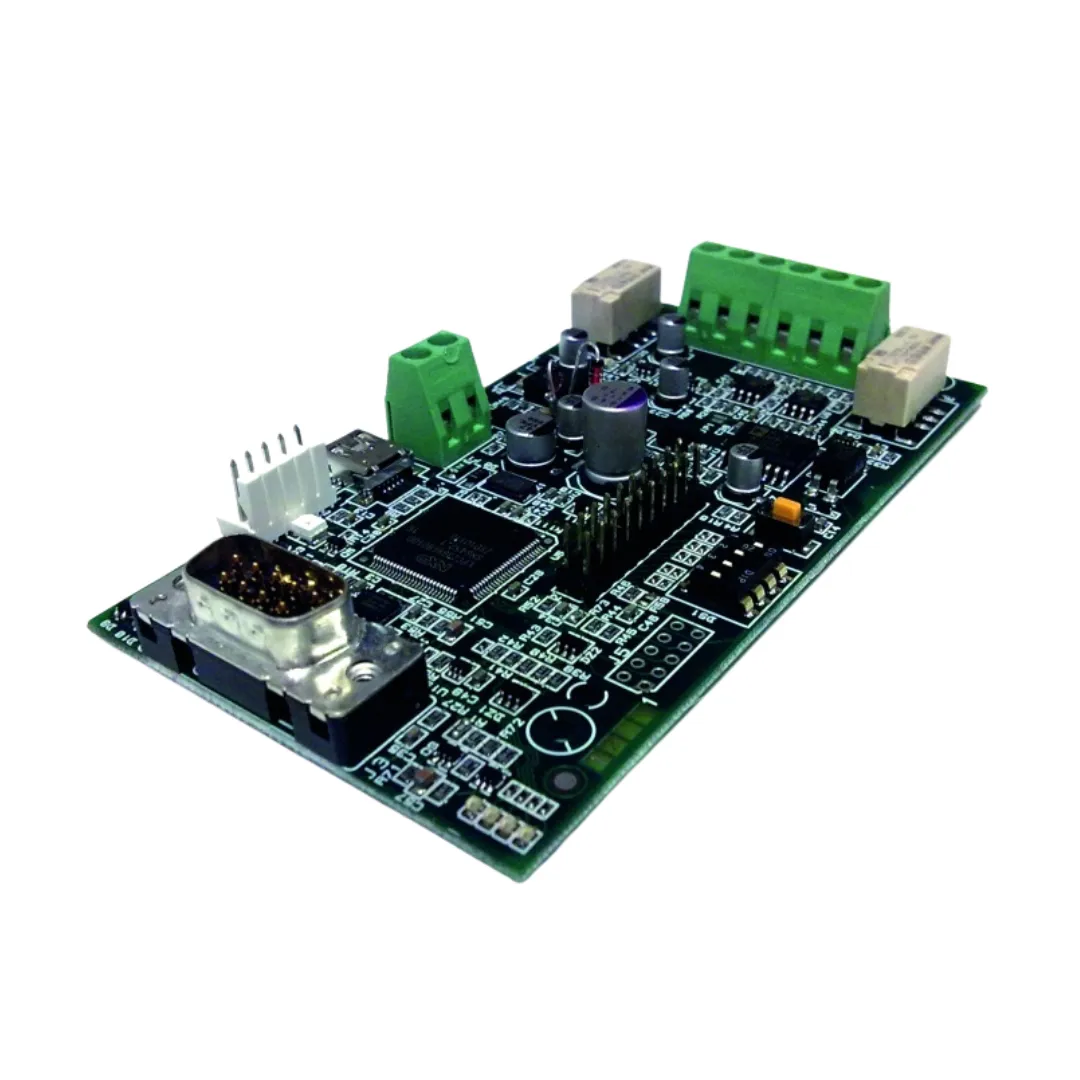

With One Ring you can connect in a ring network up to 32 TeledataOne, so is possible to create a system that shares all informations of each single panel.
Technical Specifications
- Network card for Olympia and Teledata One control panel
- CAN BUS Connection
- Speed communication up to 50 Kbps
- High fault tolerant, able in the presence of network failure, to maintain the necessary information pass between the nodes
- Compatible with central Olympia – Teledata One
- Prepared for mounting inside the central Olympia/Teledata One
- Range up to 1.2 km with a special cable
- Consumption 250mA max – 50mA nominal
- 12 Vdc power supply from the central Olympia
- 24 Vdc power supply from the central TeledataOne
