Description

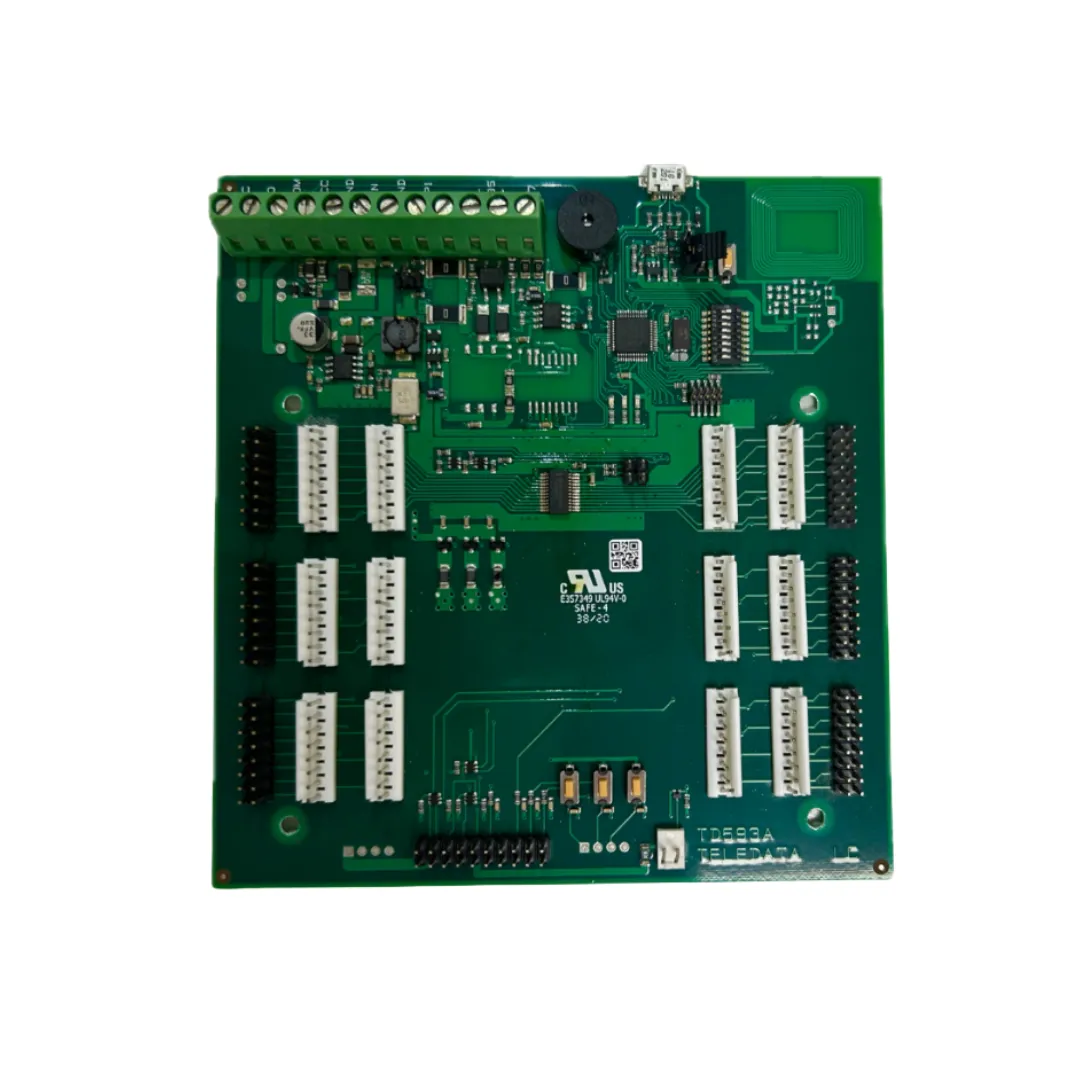

ONEMIMIC connects to the control panel via bus RS-485, ONEMIMIC provides information on the status of the fire detection system, both general and by area status.
It is equipped with 48 outputs for area LEDs, plus a series of output for general fault indications. Also, there is a button to test the LEDs’ flashing.
ONEMIMIC is equipped with a series of input and output connectors used for the direct connection to the LEDs or to a interface board.
It is possible to connect up to 16 ONEMIMIC cards, setting the addresses via DIP SWITCH. The sistem supports the activation of 4 LED blocks.
Technical Specifications
- Supply voltage 24Vcc
- Transmission protocol RS485
- Size 243x138x45mm
- Pre-painted sheet 1 mm thickness metal case
