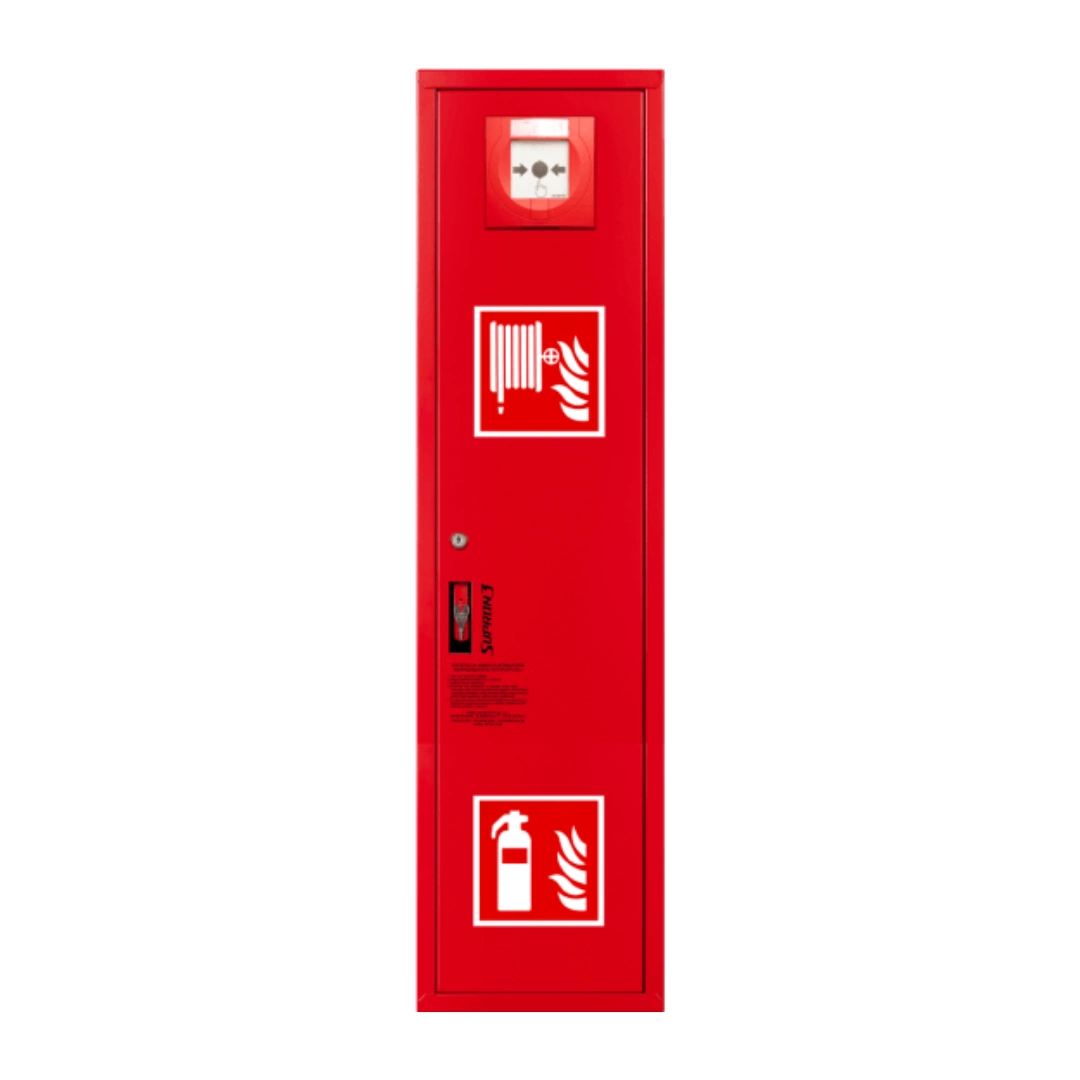

INTERNAL HYNRANT DN25 – MCP, SIDE VERSION, WITH PLACE FOR FIRE EXTINGUISHER
HYDRANT DIMENSION
Height: 1100 mm
Width: 280 mm
Depth: 700 mm
RECESS DIMENSION
Height: 1120 mm
Width: 300 mm
Depth: 710 mm
TECHNICAL FEATURES
Internal hydrant DN25 with place for fire alarm Manual Call Point – dimensions of the hole according to the customer’s specification, with 25 mm semi-rigid fire hose – side version. Mounted on the wall (Z) or recessed (W). Holes for water connection are blanked, enable to connect to water pipe 1” or 2”. Working pressure from 0,2 to 1,2 MPa.
S-25R-ZBG30-P-XXXX
Type: Mounted on the wall
Hose length: 30m
Lock: Two types of locking
Supports/bases [height x depth]: 550 x 250
Number of supports/bases: 2 pcs.
S-25R-ZBG20-P-XXXX
Type: Mounted on the wall
Hose length: 20m
Lock: Two types of locking
Supports/bases [height x depth]: 550 x 250
Number of supports/bases: 2 pcs.
S-25R-WBG30-P-XXXX
Type: Mounted in a recess
Hose length: 30m
Lock: Two types of locking
Supports/bases [height x depth]: 550 x 250
Number of supports/bases: 2 pcs.
S-25R-WBG20-P-XXXX
Type: Mounted in a recess
Hose length: 20m
Lock: Two types of locking
Supports/bases [height x depth]: 550 x 250
Number of supports/bases: 2 pcs.
